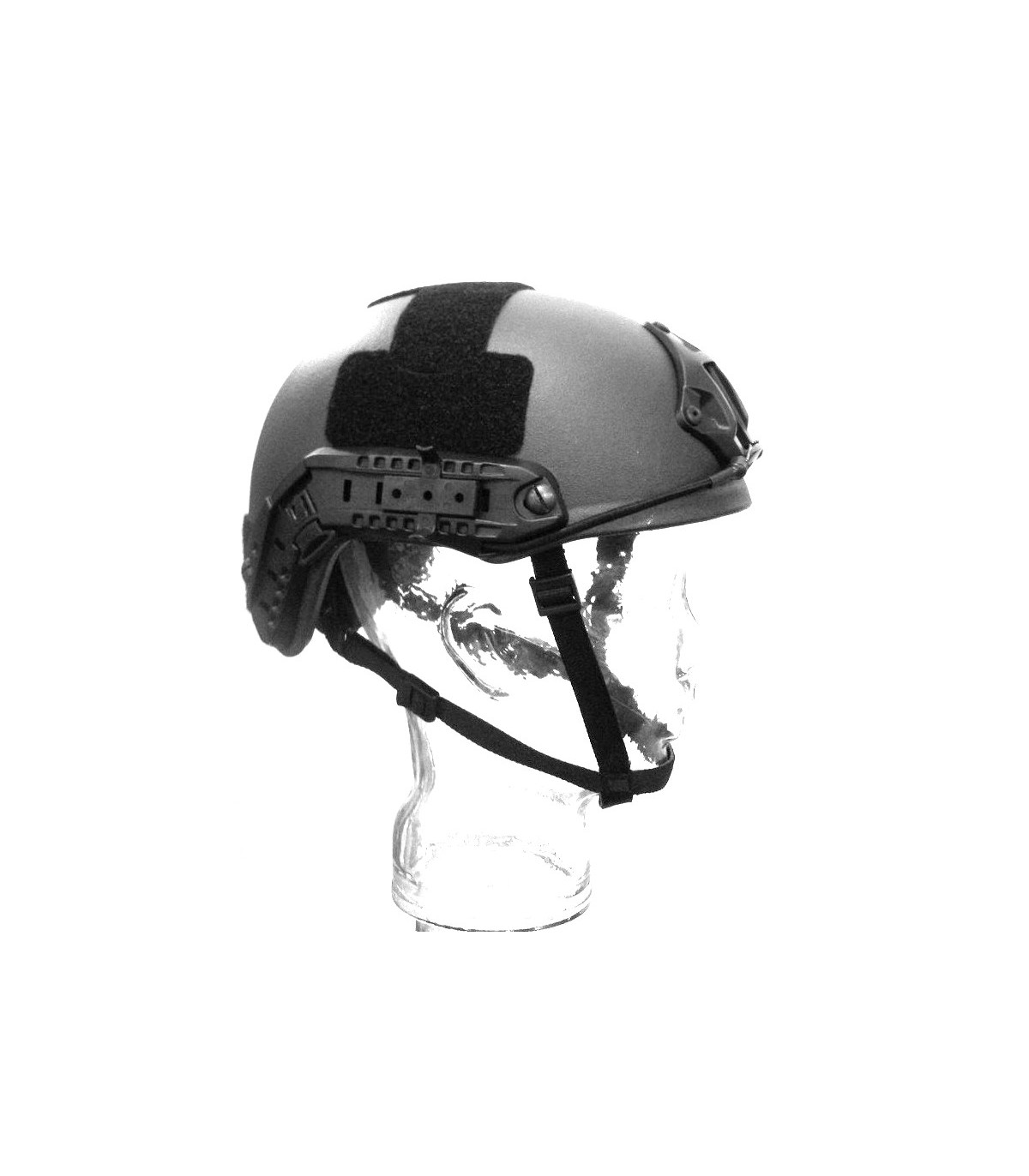

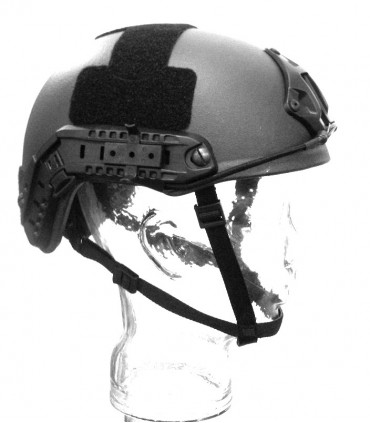

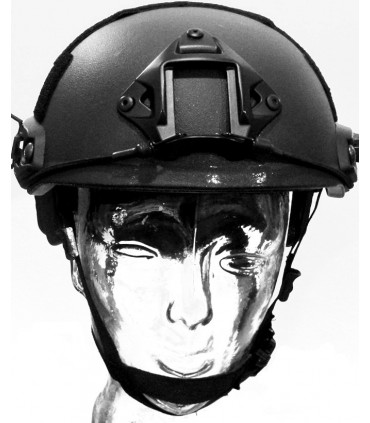

Ultralight special OPS Helmet "ACH" NIJ IIIA+V50 700 m/s (1.55 Kg - 3.4 lbs)

Ultralight ACH Ballistic Helmet CSC26 – NIJ IIIA+ V50 700 m/s

The CSC26 is the latest special operations helmet developed by Nidec Defense. Originally designed for U.S. Army airborne special intervention units, it responds to the need for a more compact helmet than PASGT or PASCUT models, especially in confined environments such as aircraft and helicopters.

Operational Design & Ergonomics

• Compact format optimized for aircraft and confined spaces.

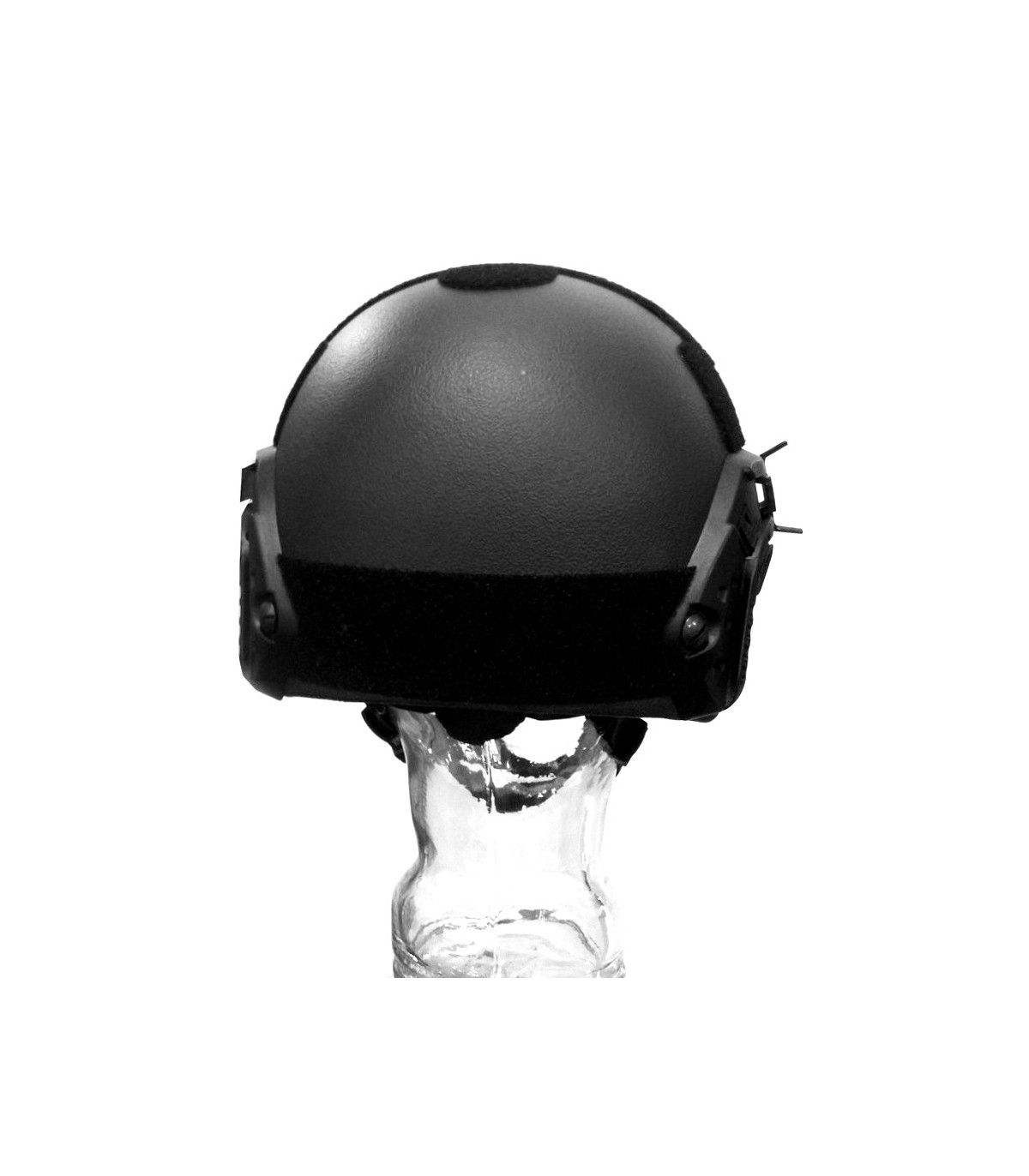

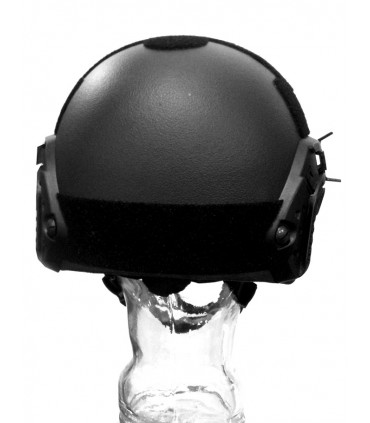

• Extended rear coverage for increased base-of-skull protection.
• 4-point retention system anchored with ballistic-grade screws.
• Front and rear Dial-Lock adjustment system for precise head fit.
• Comfortable compatibility with long firearms and communication systems.

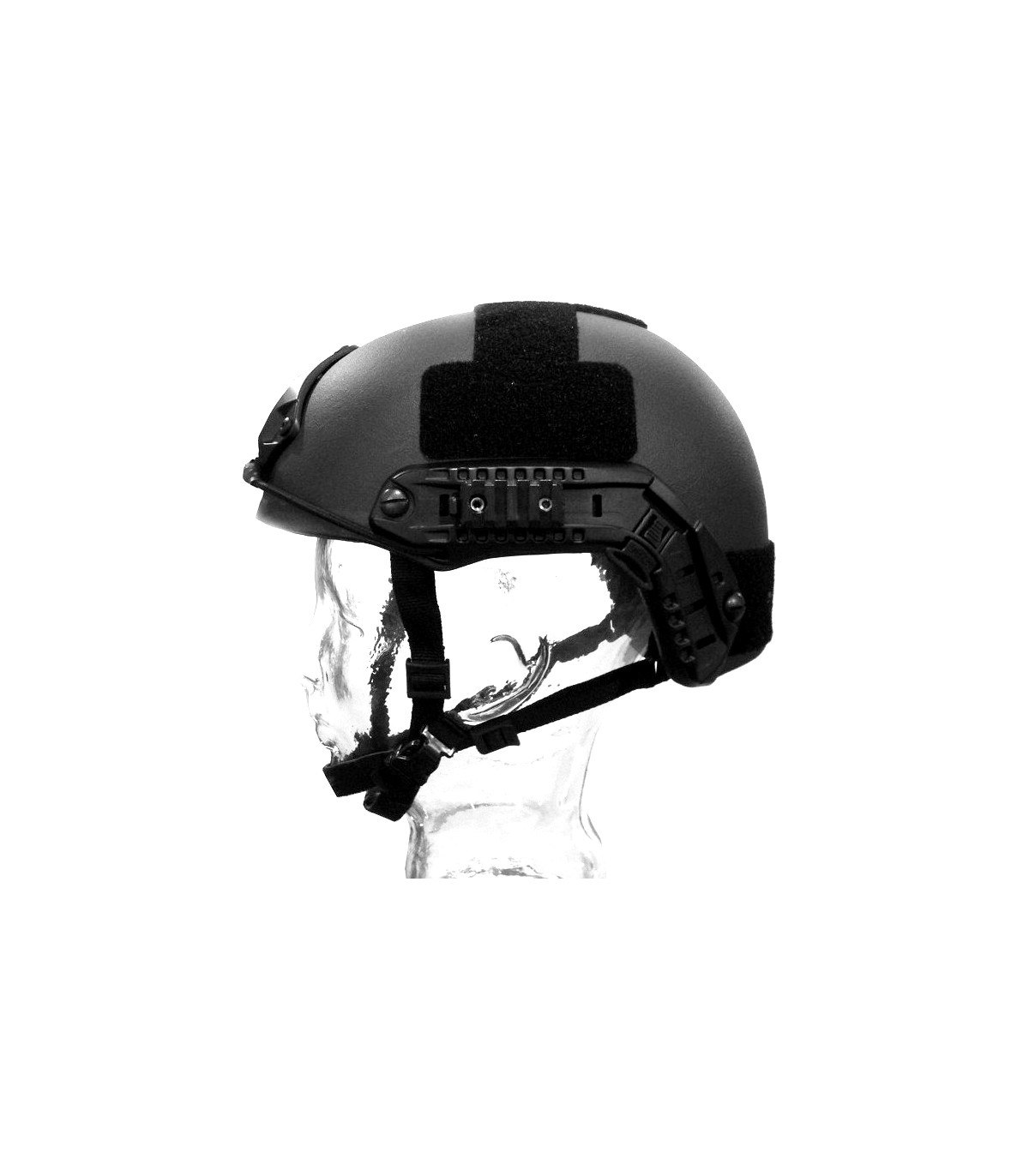

Accessory System

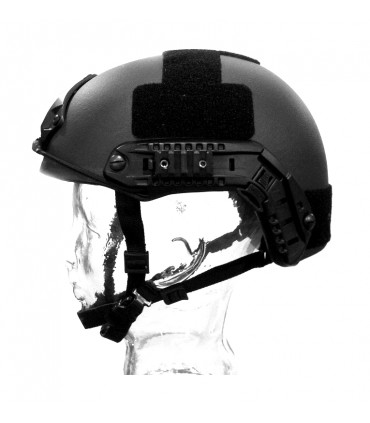

• Military standard lateral Picatinny rails.

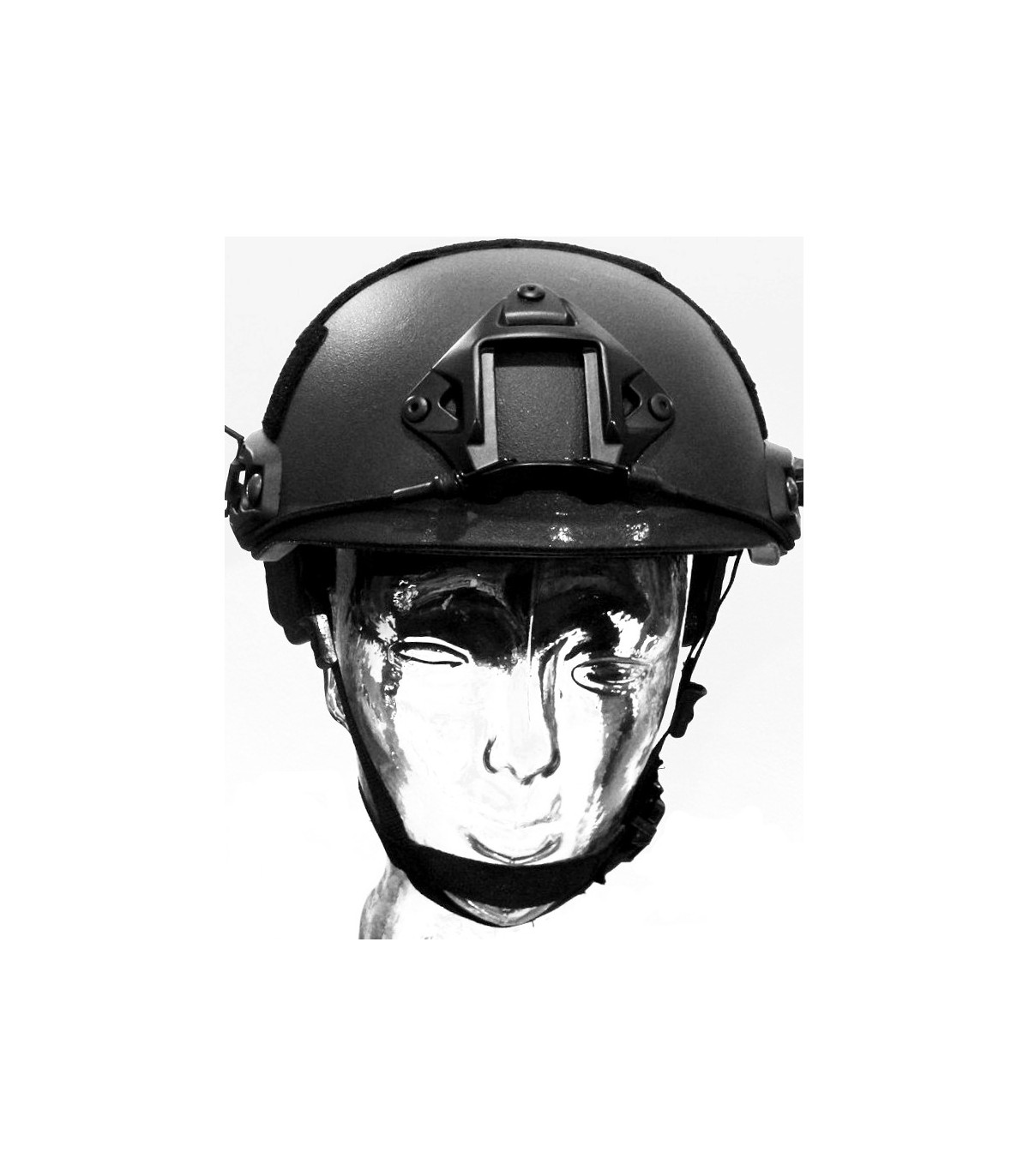

• Integrated universal NVG mount.
• Compatible with flashlights, IR signaling devices and Picatinny accessories.

Material & Composition

• Manufactured in aramid fibers (Kevlar).
• Proprietary composite system using pressed aramid fabric and resin.
• Excellent ballistic performance in all climates.
• Low backface deformation upon ballistic impact.
• Flame retardant.

Technical comparison: Externally similar helmets made of PE (High Density Polyethylene) exist. Although they offer good anti-fragment protection at lower cost, they are not recommended for hot climates and produce greater backface deformation compared to layered aramid fabric helmets.

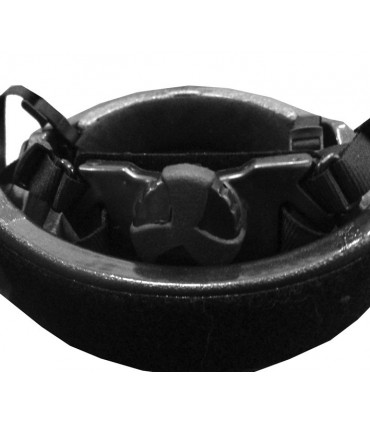

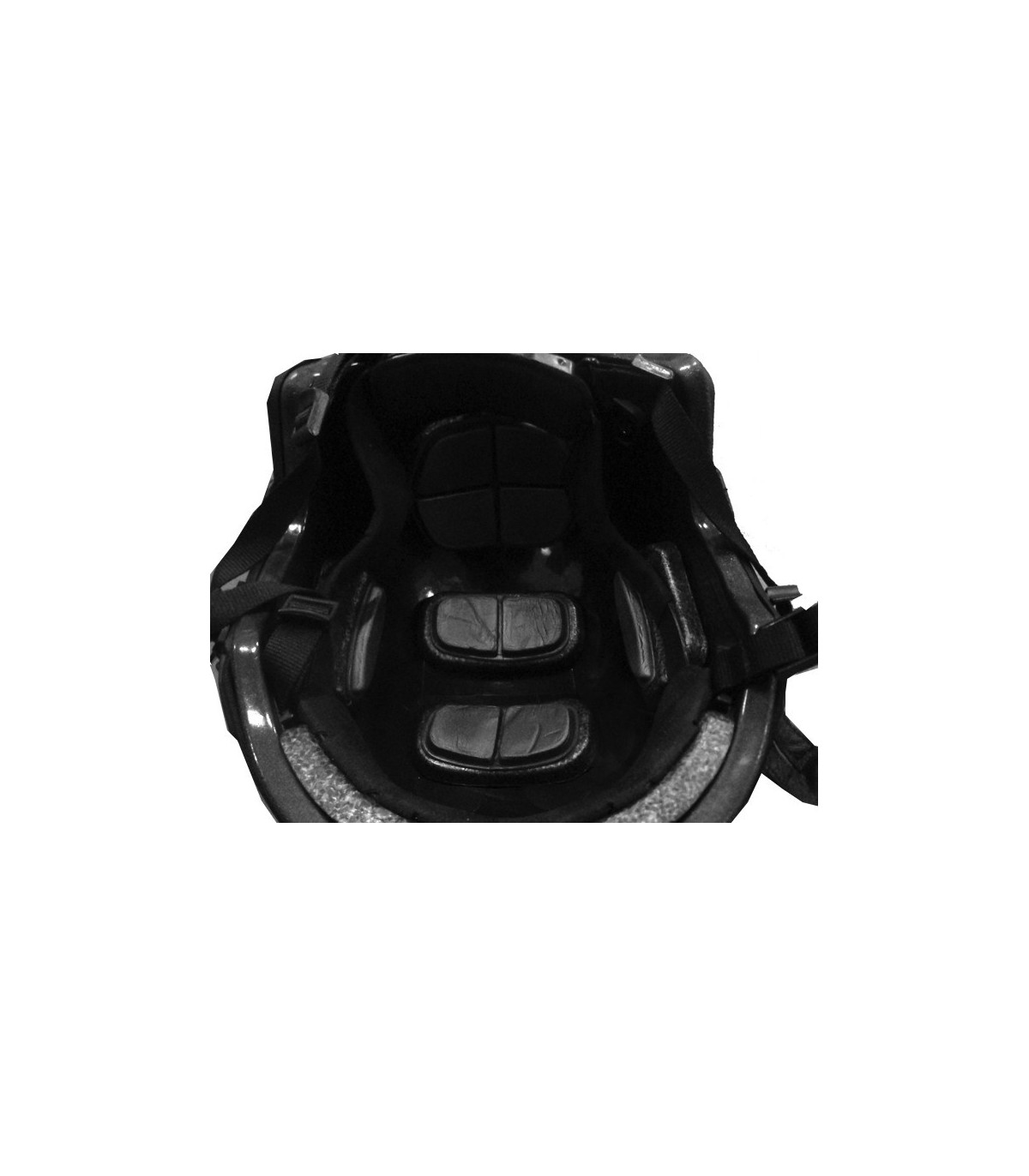

Internal Padding System

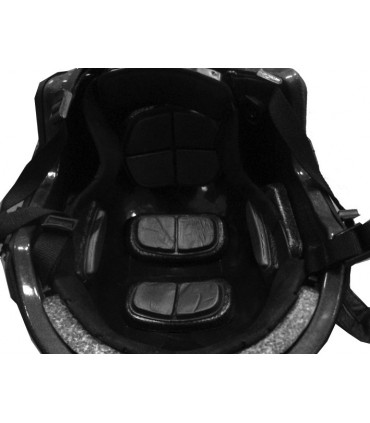

• 5 viscoelastic gel pads secured with Velcro.

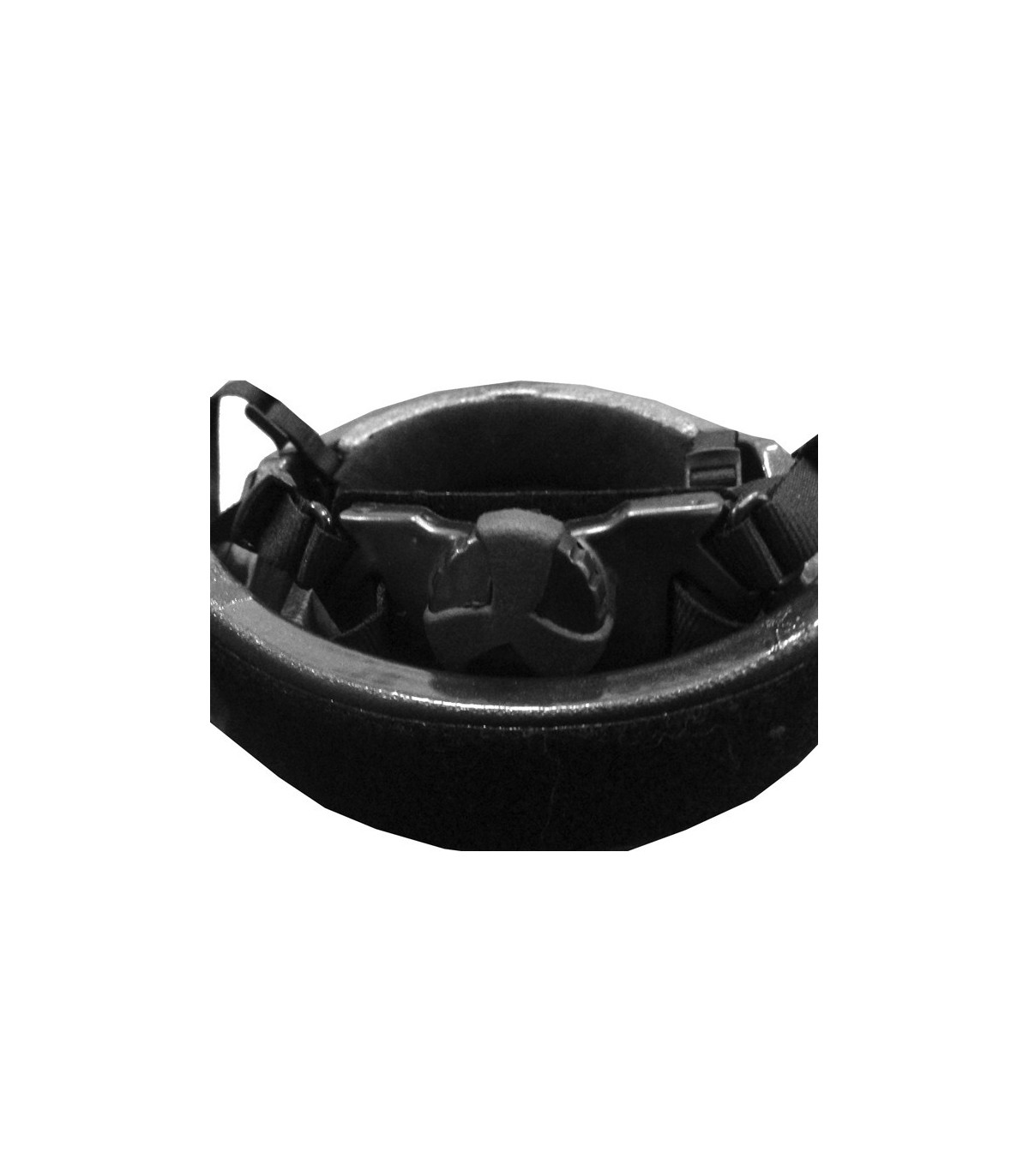

• Internal diameter adjustment via Dial-Lock system.
• Dedicated nape padding.
• MIL nylon cross retention straps for enhanced stability.

Ballistic Performance – NIJ 0106.01

• .44 Magnum SJHP – 15.6 g – 436 m/s
• .357 Magnum JSP – 8.1 g – 448 m/s
• .357 Magnum JSP – 10.2 g – 436 m/s
• 9 mm FMJ RN – 8.0 g – 398 m/s
• .40 S&W FMJ – 11.7 g – 352 m/s

Maximum Test – NIJ IIIA

• 9 mm FMJ – 124 grains
• Maximum velocity: 1450 ft/sec (442 m/s)
• Number of impacts: 4
• No penetration

Fragmentation Resistance – STANAG 2920 / MIL-STD-662F

• FSP 17 grains
• V50: 2132 ft/sec (650 m/s)
• Technical specification: V50 700 m/s

Low Velocity Impact – EN 397

• Object: 50 mm diameter metal ball
• Mass: 5.0 kg
• Drop height: 1000 mm
• Residual force: < 5.0 kg

Technical Specifications

• Ballistic protection level: NIJ IIIA.
• Fragment resistance: STANAG 2920 FSP 17 grains.
• Lateral Picatinny rails.
• Integrated universal NVG mount.
• Adjustable size via internal suspension system.
• Optional oversized shell available.
• Standard color: Matte black.
• Optional colors: sand, military green, blue (minimum order required).
• Shell weight: 1.35 kg.
