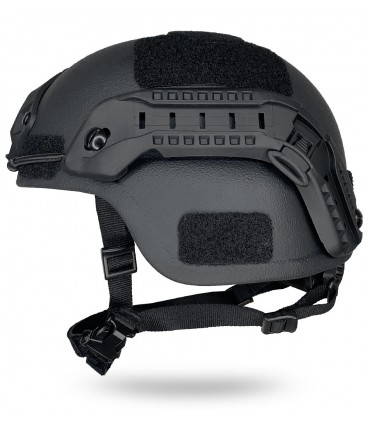

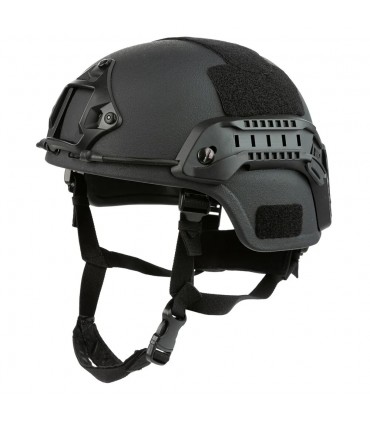

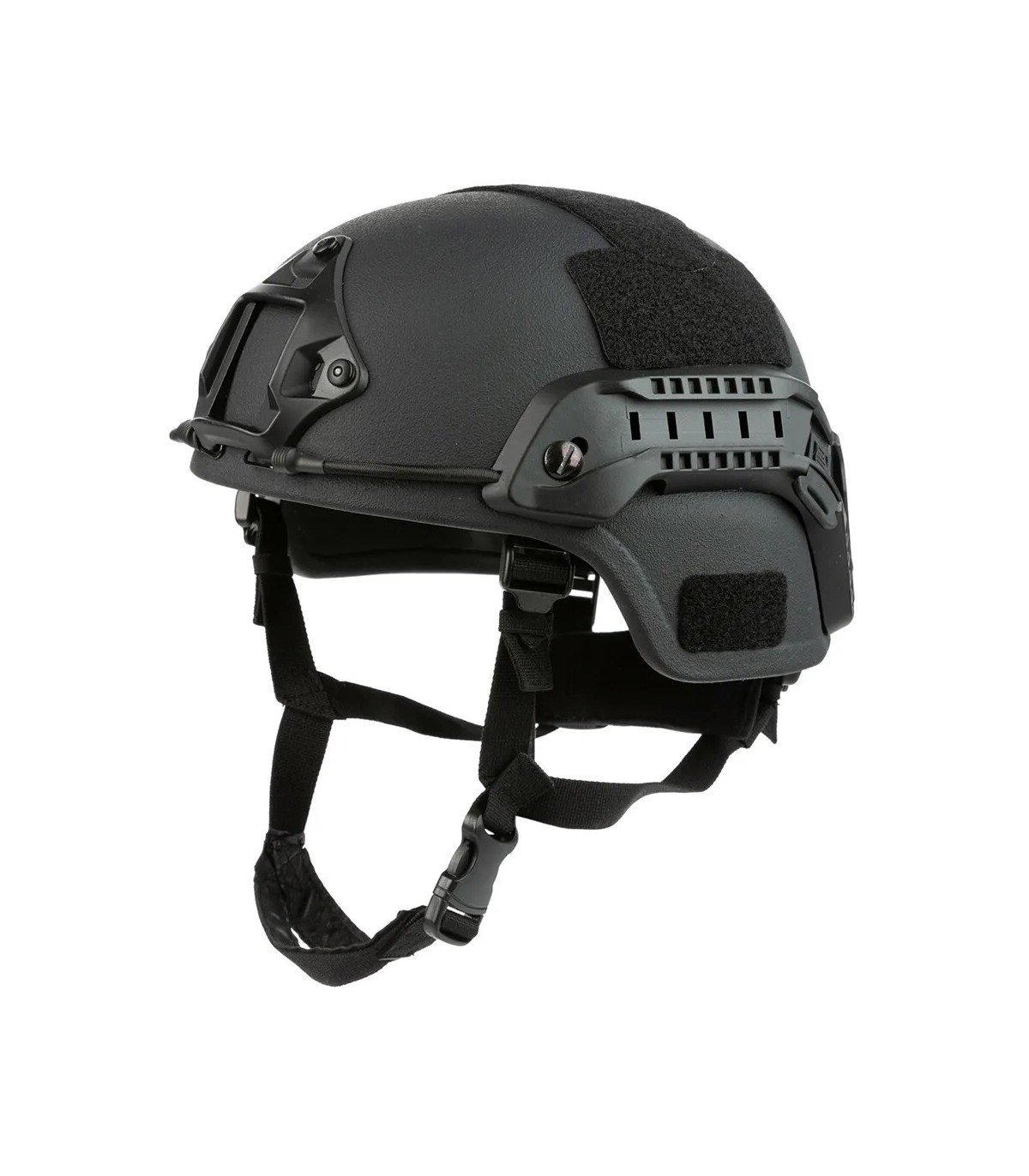

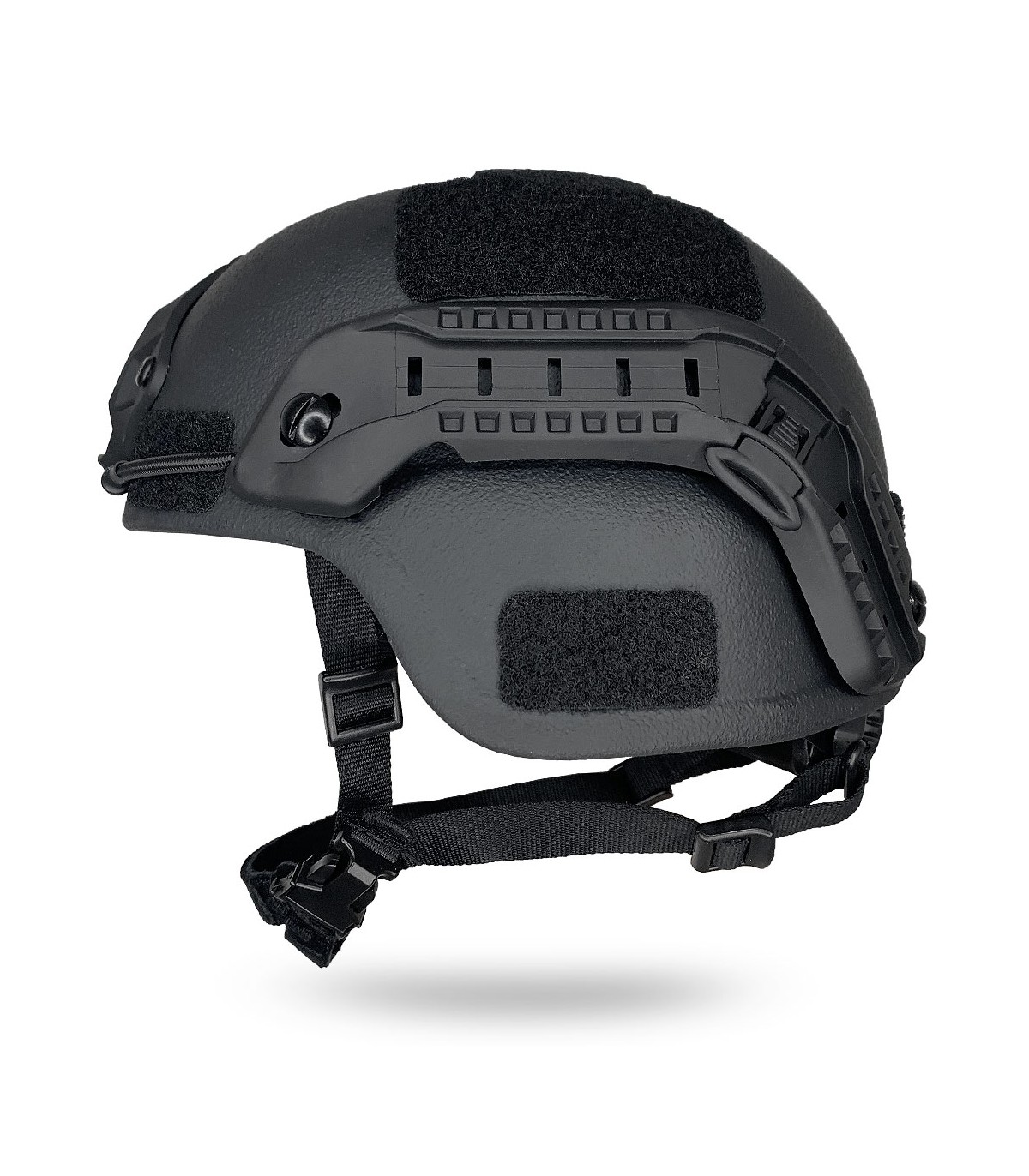

MICH TACTICAL Ballistic Helmet NIJ IIIA+V50 700 m/s (1,45 Kg)

MICH Tactical Ballistic Helmet CSC11 – NIJ IIIA+ V50 700 m/s

The NIDEC CSC11 Advanced MICH Tactical has been manufactured according to United States Army performance and protection requirements regarding ballistic resistance, impact, retention and overall head protection.

It is characterized by its extended protection surface (0.11 m² in standard size), providing enhanced coverage against ballistic and fragmentation threats.

MICH Design – Ergonomics & Coverage

• Lighter than the previous PASGT infantry helmet.
• Optimized ergonomic design.
• Elimination of front visor for improved field of view.
• Raised lateral profile for improved communication system compatibility.
• Standard protection surface: 0.11 m².
• Optional oversized shell available.

Retention & Adjustment System

• 4-point retention system with ballistic-grade screw anchoring.
• Front and rear adjustment via Dial-Lock system.
• MIL nylon cross retention straps for enhanced stability.
• Dedicated nape padding.

Compatibility & Accessories

• Military standard lateral Picatinny rails.
• Universal frontal NVG mount.
• Velcro patches for identification and accessories.

Material & Composition

• Manufactured in aramid fibers (Kevlar).
• Proprietary composite system using pressed aramid fabric and resin.
• Flame retardant.
• Stable ballistic performance in both cold and hot climates.
• Very low backface deformation upon ballistic impact.

Technical comparison: Externally similar PE (High Density Polyethylene) helmets exist. While offering lower cost and good fragmentation resistance, they are not recommended for hot climates and generate greater traumatic deformation compared to layered aramid fabric helmets.

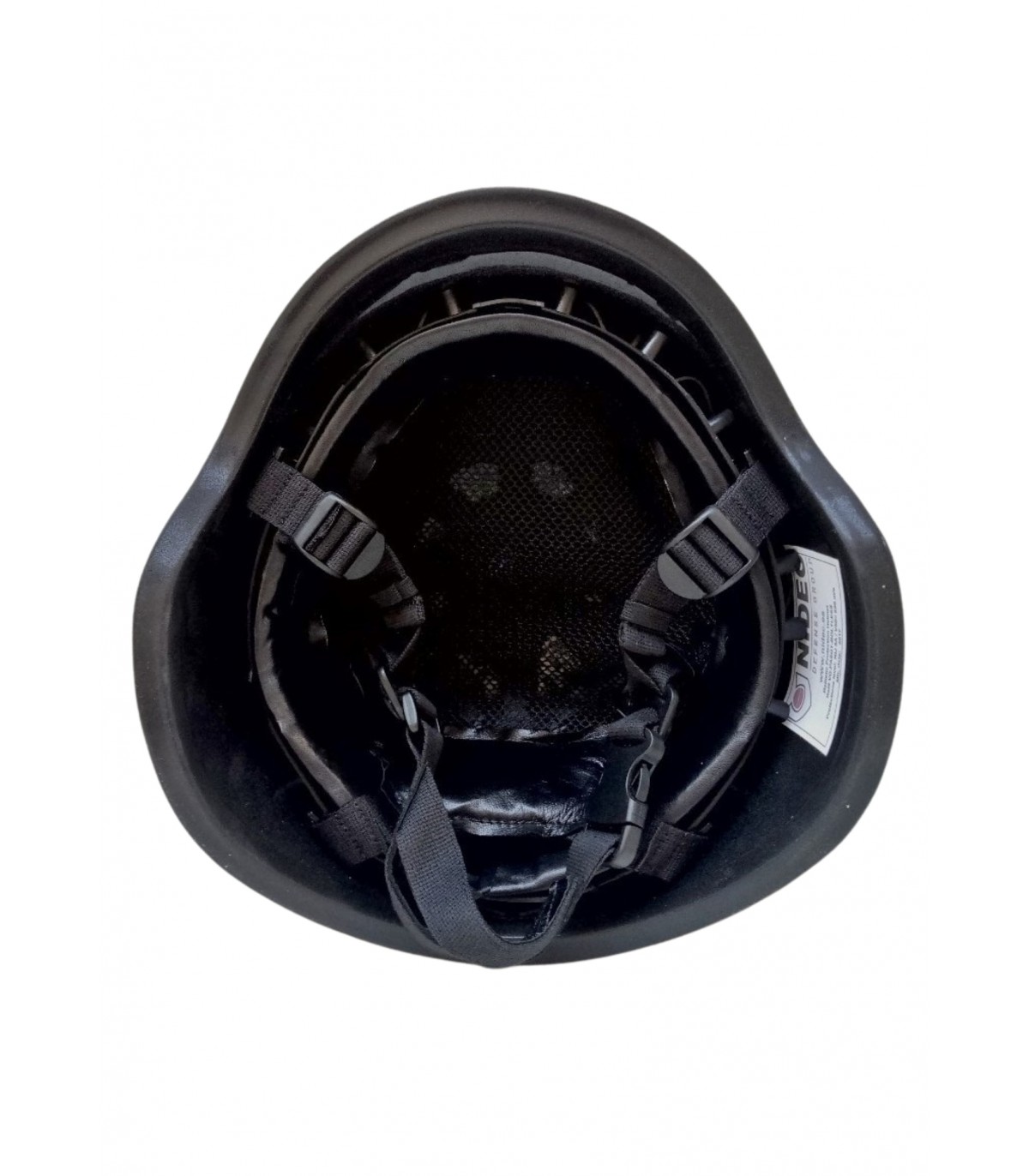

Internal Padding System

• 5 viscoelastic gel pads secured with Velcro.
• Internal diameter adjustable via Dial-Lock.
• Ergonomic adaptation to virtually all head sizes.

Ballistic Performance – NIJ 0106.01

• .44 Magnum SJHP – 15.6 g – 436 m/s
• .357 Magnum JSP – 8.1 g – 448 m/s
• .357 Magnum JSP – 10.2 g – 436 m/s
• 9 mm FMJ RN – 8.0 g – 448 m/s
• .40 S&W FMJ – 11.7 g – 352 m/s

Maximum Test – NIJ IIIA

• 9 mm FMJ – 124 grains
• Maximum velocity: 1,450 ft/sec (442 m/s)
• Number of impacts: 4
• No penetration

Fragmentation Resistance – STANAG 2920 / MIL-STD-662F

• FSP 17 grains
• V50: 2332 ft/sec (700 m/s)

Low Velocity Impact – EN 397

• Object: 50 mm diameter metal ball
• Mass: 5.0 kg
• Drop height: 1000 mm
• Residual force: < 5.0 kg

Technical Specifications

• Ballistic protection level: NIJ IIIA.
• Fragment resistance: STANAG 2920 FSP 17 grains V50 700 m/s.
• Standard protection surface: 0.11 m².
• Lateral Picatinny rails.
• Universal NVG mount.
• Integrated Velcro patches.
• Adjustable internal suspension system.
• Optional oversized shell.
• Color: matte black, green or blue upon request.
• Shell weight: 1.55 kg.
• Service life: 5 years.
