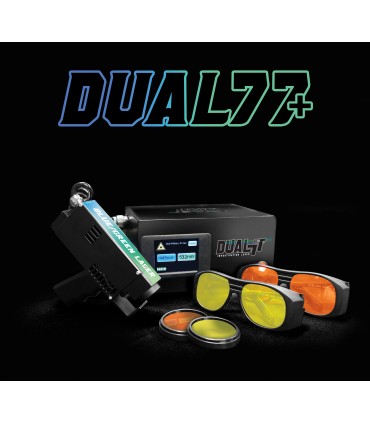

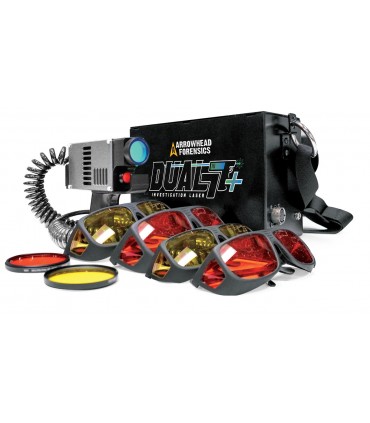

Dual 77+ Pistol Grip Investigation Laser - 8W 532nm and 8W 445nm

The Dual77+ 445nm/532nm Pistol Grip Investigation laser system is used to detect latent fingerprints and other evidence such as, bone fragments, footprints, bodily fluids, chemically treated prints and more. During fluorescence examination the investigator scans the diverging laser beam slowly across a surface. The laser operates at a wavelength of 445nm or at 532nm with a maximum radiant power of 8 watts. Compact, lightweight design makes this a truly portable laser for both the scene and the lab.

SPECIFICATIONS:

Wavelength: 445nm and 532nm (Selectable)

Beam Quality: Uniform speckle free illumination

Output Power: 8W @ 445nm; 8W @ 532nm

CONTROL

Touch screen to control output power 1W – 8W

Automatic wavelength detection

‘Dead man finger’ (i.e. Press for output / release no output)

1 meter (additional option for 2 meter) light guide

POWER REQUIREMENTS FOR BATTERY CHARGING

Mains Voltage: 90-240V AC

Frequency: 50 Hz / 60 Hz

Power Consumption: 70W Maximum; 60W Typical

BATTERY

Input Voltage: 12.6 VDC (Integral battery pack)

Battery Lifetime:

Approx 20 Hours typical use @ 445nm

Approx 2 hours continuous @532nm

Lifetime: >10,000 hours

Charging time: 3 hours

OPERATING CONDITIONS

Ambient temperature Range: 41-104oF (5-40oC)

Humidity: 8-85%, non-condensing

Dimensions: 8.5" (L) x 4.5" (W) x 6.25" (H)

Weight: 5.4lbs

KIT INCLUDES:

445nm/532nm Pistol Grip Laser attachment

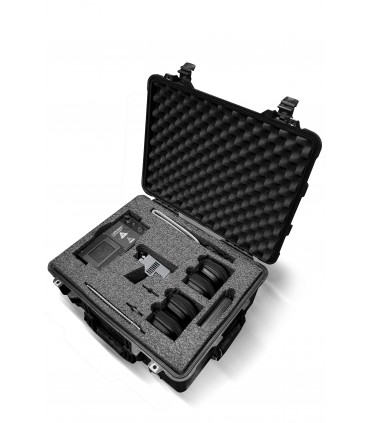

Pelican Carrying Case with Wheels

4 Pair Goggles (2 pair Yellow for 445nm / 2 pair Orange for 532nm)

62mm Camera Filters (Yellow for 445nm / Orange for 532nm)

Battery Charger

Instruction Manual

1 Year Warranty
