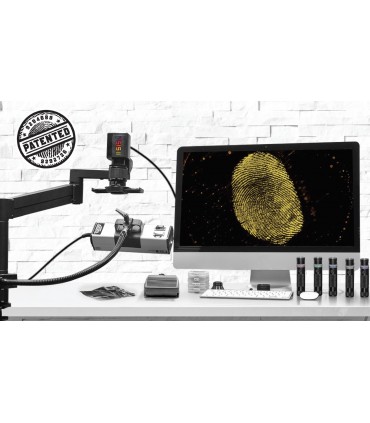

FSIS II Fingerprint and traces locator. Laboratory system

The new Full Spectrum COLOR Imaging System (FSIS-II) is the most advanced forensic image capturing system in the world. The FSIS-II features a patented 20MP digital camera with 50mm UV lens. Now, for the first time, the new FSIS-II can capture an image in FULL COLOR in 5K! With over 20 megapixels of resolution and sensitivity from 254nm to 1100nm, the FSIS-II can easily capture a full handprint at 1000 PPI (pixels per inch), and micro evidence up to 4,800 PPI. No more looking for a latent fingerprint with a handheld RUVIS and then blindly photographing the evidence in order to get a high resolution image. There is absolutely no limit to the various types of evidence that can be processed using the FSIS-II. Put it to the test and request a demo today!

FSIS II UPGRADES INCLUDE:

• FULL RESOLUTION FRAME RATE HAS INCREASED UP TO 18 F/S – WHEN EXPOSURE IS SET TO 55MSEC OR LESS

• FAST SCAN FRAME RATE HAS INCREASED UP TO 60 F/S – WHEN EXPOSURE IS SET TO 17MSEC OR LESS

• ZOOM FOCUS FRAME RATE HAS INCREASED UP TO 142 F/S – WHEN EXPOSURE IS SET TO 7MSEC OR LESS

• FULL RESOLUTION HAS INCREASED BY 25% NOW 20MP

• AST SCAN RESOLUTION HAS INCREASED BY 25% NOW 2.2MP

• THE 1000 PPI IMAGING AREA HAS INCREASED NOW 5.4" BY 3.6"

• MAXIMUM RESOLUTION HAS INCREASED TO 4,800 PPI AT 4.2" DISTANCE AT 254NM

• HDR ENHANCEMENT AVAILABLE IN LIVE VIDEO AND IMAGE CAPTURE HDR CAPABILITY OFFERS GREATER DETAIL IN DARK IMAGES

Patent Number 9294689 Camera: Full Spectrum Imaging System (FSIS)
Patent Number 9292726 Software: Photography of 3D, Curved and Textured Surfaces (Integration)

CONTENTS:

• Apple iMac All-In-One Computer (running Windows 10) Intel Six-Core 3.2GHz, 8GB RAM, 1TB Hard Drive, with a 27 inch 5120 x 2880 pixel (5K) display, a tethered mouse and keyboard

• 20MP Digital FSIS-II camera, w/ 20 Megapixel resolution able to image a 5.4" by 3.6" area with 1000 PPI resolution from 254nm to 1100nm. Able to capture FULL COLOR 24 bit images (60MB file size). Camera is pre-threaded for optional tripod mounting.

• Patented Curved Surface Software

• Integrated Foot Pedal (for hands-free image capture)

• Articulating Camera Arm

• Flexible Arm for Light Source

• 50mm UV Lens with Universal Filter Holder

• 365nm UV Bandpass Filter

• 445nm Blue Bandpass Filter

• 695nm IR Filter

• 3 Position Filter Slider includes: 254nm UV, 550nm Orange, 830nm IR Filter

• Shortwave (254nm) UV Light

• 3 watt, 365nm (UV) LED Flashlight

• 3 watt, 455nm (Blue) LED Flashlight

• 3 watt, 525nm (Green) LED Flashlight

• 3 watt, 625nm (Red) LED Flashlight

• 3 watt, 850nm (IR) LED Flashlight

• Chargers for Flashlights (12V, 100-240VAC)

• UV Face shield

• UV and Orange Goggles

• 2 Year Manufacturer Warranty

• *Extended Warranty available upon request
