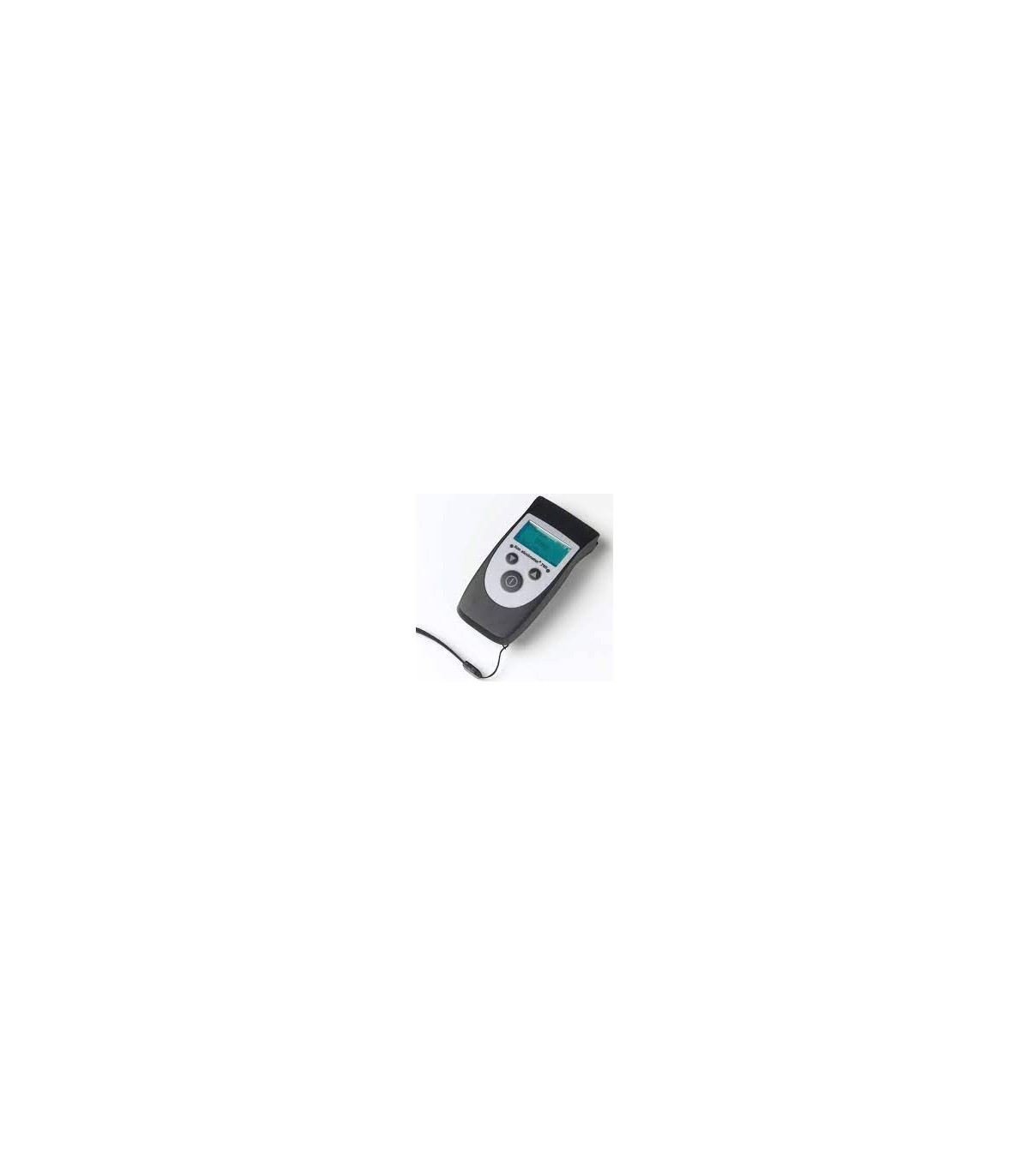

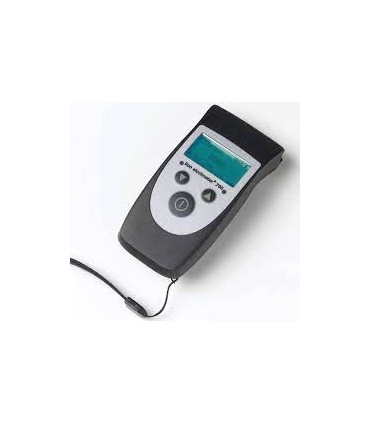

Portable Field Breathalyzer LION 700

LION 700 Portable Breath Alcohol Sampler

The LION 700 Portable Breath Alcohol Sampler is the ideal tool for security forces. This compact and lightweight portable breathalyzer stands out for its low energy consumption and simplicity of use with just two AA alkaline batteries. Unlike other breathalyzers, it only requires an annual check-up, guaranteeing savings in maintenance costs.

Key Features of the LION 700:

Precise and Robust Technology (Lion Fuel Cell)

Equipped with a LION electrochemical fuel cell sensor, the LION 700 measures ethanol concentration with high sensitivity and precision (tolerance within 10% at 100 mg/dL).

• Reliability: Avoids false positives caused by ketones or hydrocarbons and guarantees reliable and reproducible results over time.
• Efficient Maintenance: Inspection and calibration are valid for up to 1 year, reducing long-term costs. Includes an internal self-check system that alerts the user when calibration is due based on usage.

Simple and Versatile Operation

• Speed: Performs tests in less than 10 seconds from power-up, with a recovery time of just 4 seconds if the result is zero.
• Sampling Modes: Its low blowing resistance is ideal for people with respiratory problems. Allows for passive sampling (contactless) from subjects blowing towards the cone, unconscious individuals, or suspicious containers.
• Guided: The active blowing process is guided with acoustic and visual signals to indicate sufficient flow.

Ergonomic, Safe, and Hygienic Handling

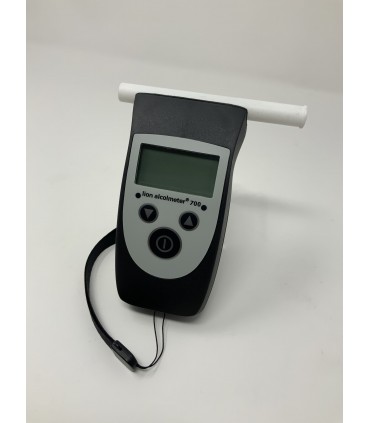

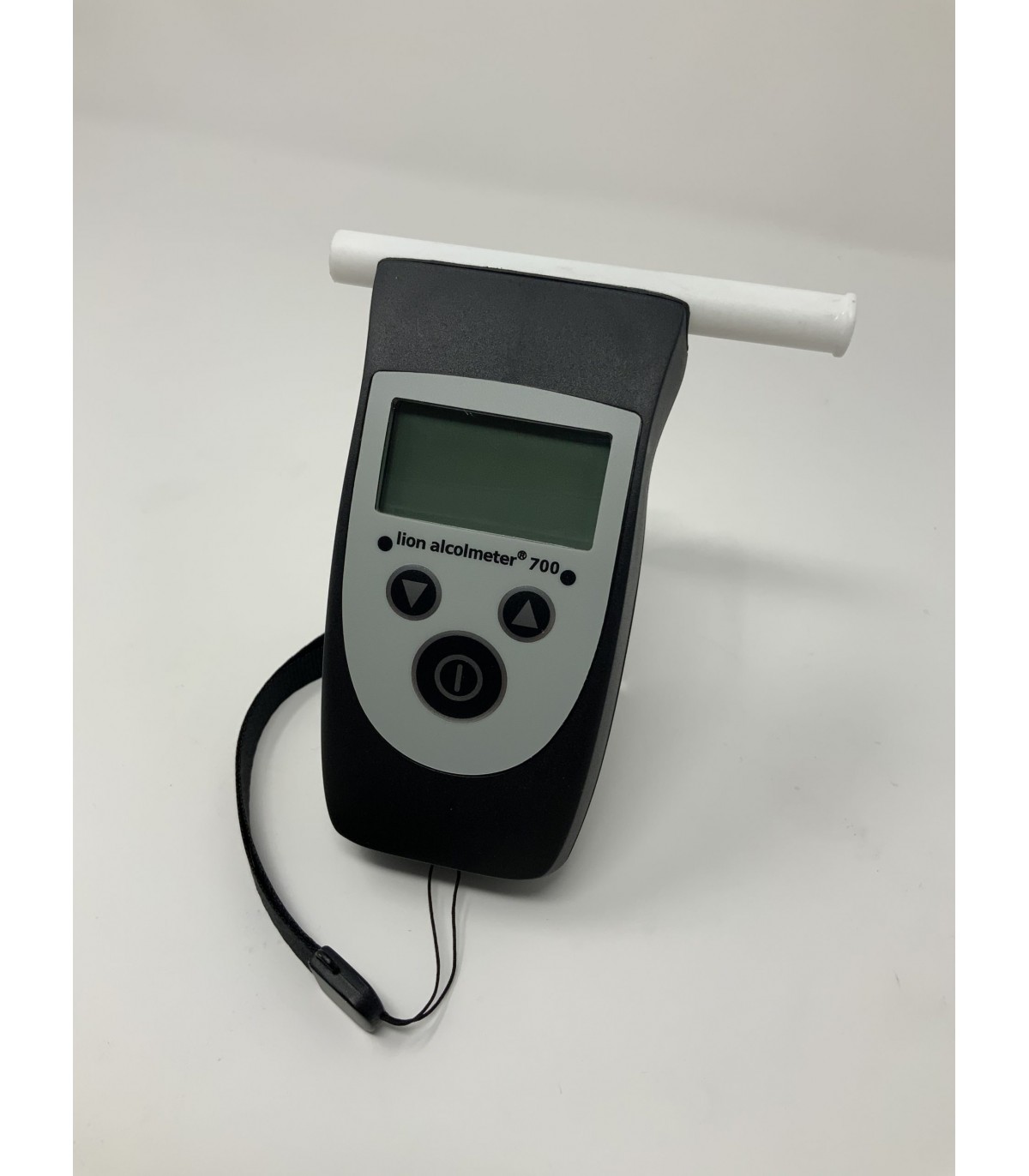

• Officer Safety: The patented AIA24-BOQ "Pressure Plus" mouthpiece is positioned perpendicularly (sideways), avoiding direct contact with the subject's breath and keeping the officer's hand out of the airflow.
• Design: Compact for one-handed use, ambidextrous (rotatable mouthpiece), and operable with gloves thanks to special buttons. Resistant to adverse weather conditions.

Interface and Data Logging

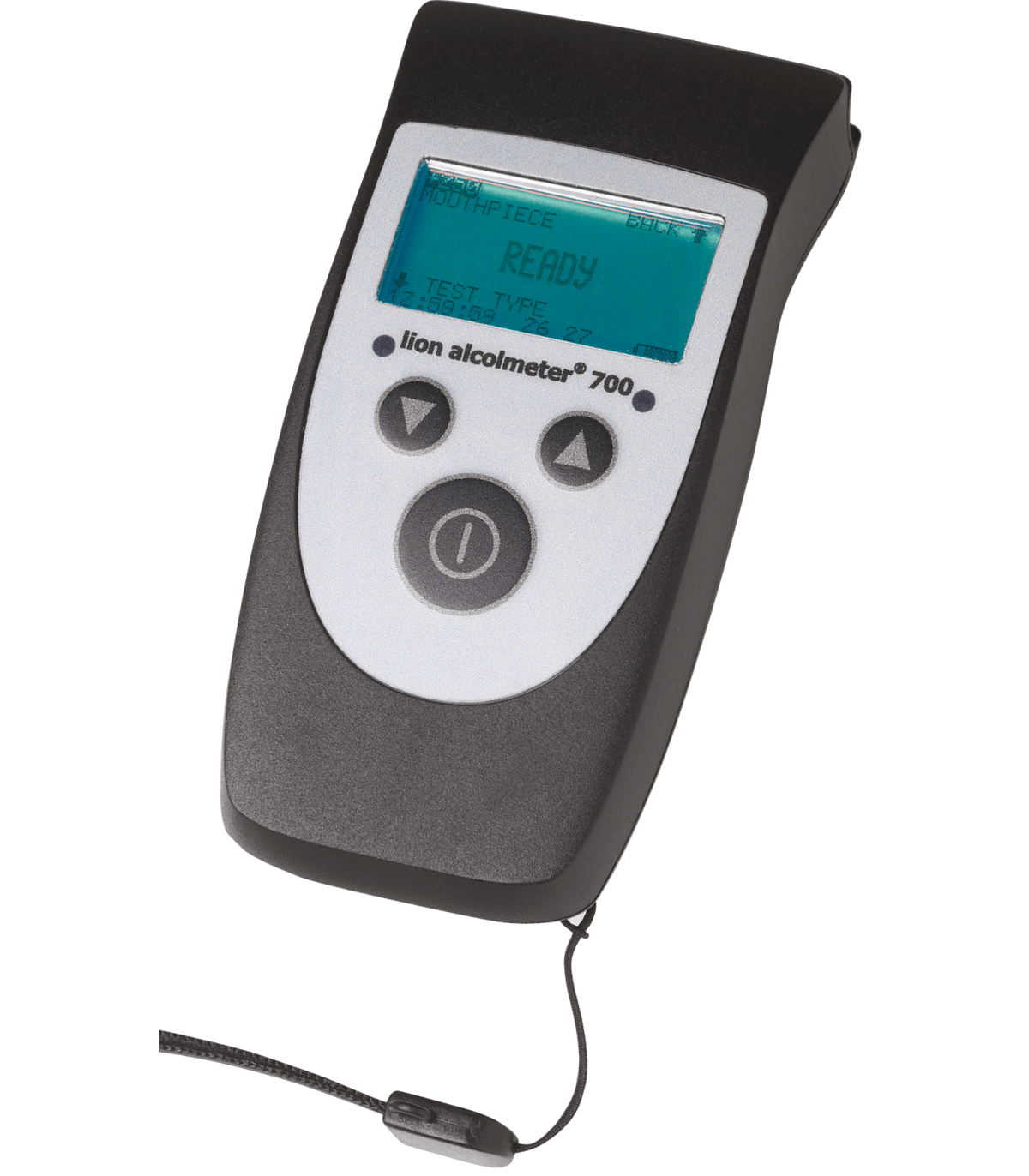

• Interface: Backlit graphic LCD screen, LED indicators, and acoustic signals for clear interpretation even in low light. Navigation with a main button and two auxiliary keys.
• Memory and Management: Stores up to 3,000 tests (with number, date, and time). Data can be printed via USB (optional printer) or transferred to a PC using the included DATA 700 software.

Low Consumption and Certifications

• Autonomy: Runs on 2 standard AA batteries, allowing between 1,000 and 1,500 tests.
• Standards: Complies with International Recommendation OIML R.126 and European Standard EN 15964:2011 for professional breathalyzers.

Technical Specifications:

• Size: 120 mm x 60 mm x 30 mm.
• Weight: 160 grams (batteries included).
• Measurement Principle: Lion Electrochemical Fuel Cell Sensor.
• Measurement Range: 0.00 mg/L to 2.50 mg/L.
• Precision: ±5 to 100 mg/dL.
• Operating Ambient Temperature: -20ºC to +40ºC.
• Operating Humidity: 10 to 95%, non-condensing.
• Internal Memory: 3,000 tests.
• Screen: Backlit graphic LCD.
• Power Supply: 2 standard AA batteries.
• Periodic Inspections: Annual basis.
• Optional Printing Kit: Printer connected via USB port.
• Transport Case: Included when purchasing the optional printing kit.
• Included Accessories: Wrist strap (lanyard).
• Optional Accessories: See printing kit, silicone case, and work case.
