Portable Sampling Breathalyzer LION 700

The Portable Sampling Breathalyzer LION 700 is the ideal tool for security forces. This portable, compact, and lightweight breathalyzer stands out for its low energy consumption and simplicity of use, operating with only two AA alkaline batteries. Unlike other breathalyzers, it requires only annual calibration, ensuring lower maintenance costs.

Key Features of the LION 700

1. Precise and Robust Technology Equipped with a LION electrochemical fuel cell sensor, the LION 700 measures ethanol concentration with high sensitivity and precision. It avoids false positives caused by ketones or hydrocarbons and guarantees reliable and reproducible results within a 10% tolerance. The LION fuel cell sensor technology ensures the results are consistently reliable over time. The device includes an internal self-check system that alerts the user when calibration is needed based on usage and results.

2. Easy Operation The device performs alcohol tests in less than 10 seconds from power-up, with a recovery time of only 4 seconds between samples if the result is zero. Its low blowing resistance makes it ideal for individuals with respiratory issues and allows for passive sample collection, such as quick sampling by blowing towards the cone without contact, or sampling from unconscious subjects and suspicious containers. The blowing process is guided, with acoustic and visual signals indicating when the airflow is sufficient.

3. Intuitive User Interface The interface is clear and simple, featuring a large main button and two navigation keys. Results are displayed on an illuminated LCD screen, accompanied by LED indicators and acoustic signals, making it easy to interpret results even in low light conditions.

4. Ergonomic and Safe Handling The compact design allows for one-handed operation and is safe for the operator, as the mouthpieces are placed to the side, avoiding direct contact with the subject's breath. LION mouthpieces can be placed on either side, facilitating use for both right-handed and left-handed users. The LION 700 can be used even with gloves, thanks to its specially designed buttons and durability in all weather conditions.

5. Results Logging With internal memory for up to 3,000 tests, results can be printed using a thermal printer connected via USB or transferred to a PC using the included DATA 700 software. All test results are logged with test number, date, and time, facilitating easy management and review.

6. Safe and Hygienic The patented mouthpiece and its perpendicular placement to the device ensure optimal hygiene, protecting the operator from potential contamination. Additionally, the operator's hand holding the device remains out of the breath's reach.

7. Low Consumption It operates on two AA batteries, allowing for between 1,000 and 1,500 tests at room temperature, significantly reducing the need for frequent replacements and ensuring greater field durability.

8. Certifications Complies with International Recommendation R.126 and European Standard EN 15964 2011 for professional breathalyzers, ensuring its reliability and precision in any situation.

Technical Specifications

• Size: 120 mm x 60 mm x 30 mm
• Weight: 160 grams (including batteries)
• Measurement Range: 0.00 mg/L to 2.50 mg/L
• Accuracy: ±5 to 100 mg/dL
• Operating Ambient Temperature: -20ºC to +40ºC
• Internal Memory: 3,000 tests
• Display: Illuminated graphic LCD
• Power Supply: 2 standard AA batteries

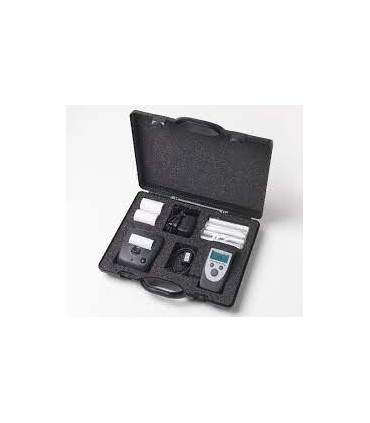

• Optional Printing Kit: Printer connected via USB for easy result printing
• Carrying Case Included: When purchasing the optional printing kit
• Periodic Inspections: Annual
• Operating Humidity: 10% to 95%, non-condensing
• Includes: Wrist strap and optional accessories such as a printing kit, silicone case, and work case

The Portable Sampling Breathalyzer LION 700 is the perfect solution for fast, accurate, and safe alcohol testing, ideal for use by security forces and other professionals who need to ensure the reliability of their results in any situation.
