The new TAF20 Bomb Disposal Suit is a new, state-of-the-art , up-armoured version of the HR4 Bomb Disposal Suit which has been in use for many years in dozens of countries worlwide. The TAF20 provides the highest level of protection of any bomb suit currently manufactured, whilst at the same time offering maximum confort and flexibility to the operator.
The ballistic levels and materials used in the various components of the TAF20 Bomb Disposal Suit are tested and evaluated to the full quality assurance laid down by the appropiate Government Organisations.
The suits consist of the folowing separate item which collectively make the completed garment.
Jacket with attached collar.
Air Cooling blower and charger.
Optional integral radio earpieces and microphone with ambient sound facility.
Helmet with visor.
Neck Protector Plate.
Chest Protector Plate.
Groin Protector Plate.
Flexible knee system
All the ballistic inserts used in the TAF20 Bomb Disposal Suit are made of waterproof-treated Aramid HT which are enclosed in a special water-resistant and ultraviolet membrane. The outer cover is supplied in flame-retarding level III. In hot and humid countries the TAF20 Bomb Disposal Suit can be supplied in conjunction with the Cooling Suit.
NATO STOCK NO: NSN 8470-99-990-0090
ARMOURED EOD HELMET: Compatible with any communication system. Air blower can accomodate NBC filter.
The EOD helmet is made of a GRP skin with an elastomeric aramid core and is fully adjustable to various sizes for perfect fit by means of the three point suspension and the removable spacer pads that Velcro to the inside. The facility for a communication set consisting of a headphone and microphone, plus extension lead for attachment to any VHF radio transceiver, is incorporated as
standard. An alternative communications system comprising a headset, microphone, 100 metres of cable and speaker/amplifier, for communication between the operator and his controller, can also be supplied. Also incorporated in the helmet is an air ventilation system which directs the flow of forced fresh air over the top of the helmet liner, across the visor and down over the operator’s
face ensuring efficient demisting and clear view. The addition of an anti-blast neck-guard to the bottom front of the helmet closes any possible frontal gap between helmet and collar.
VISOR: Ballistic hardened acrylic/polycarbonate laminate.
SUSPENSION HARNESS: Webbing & ballistic nylon.

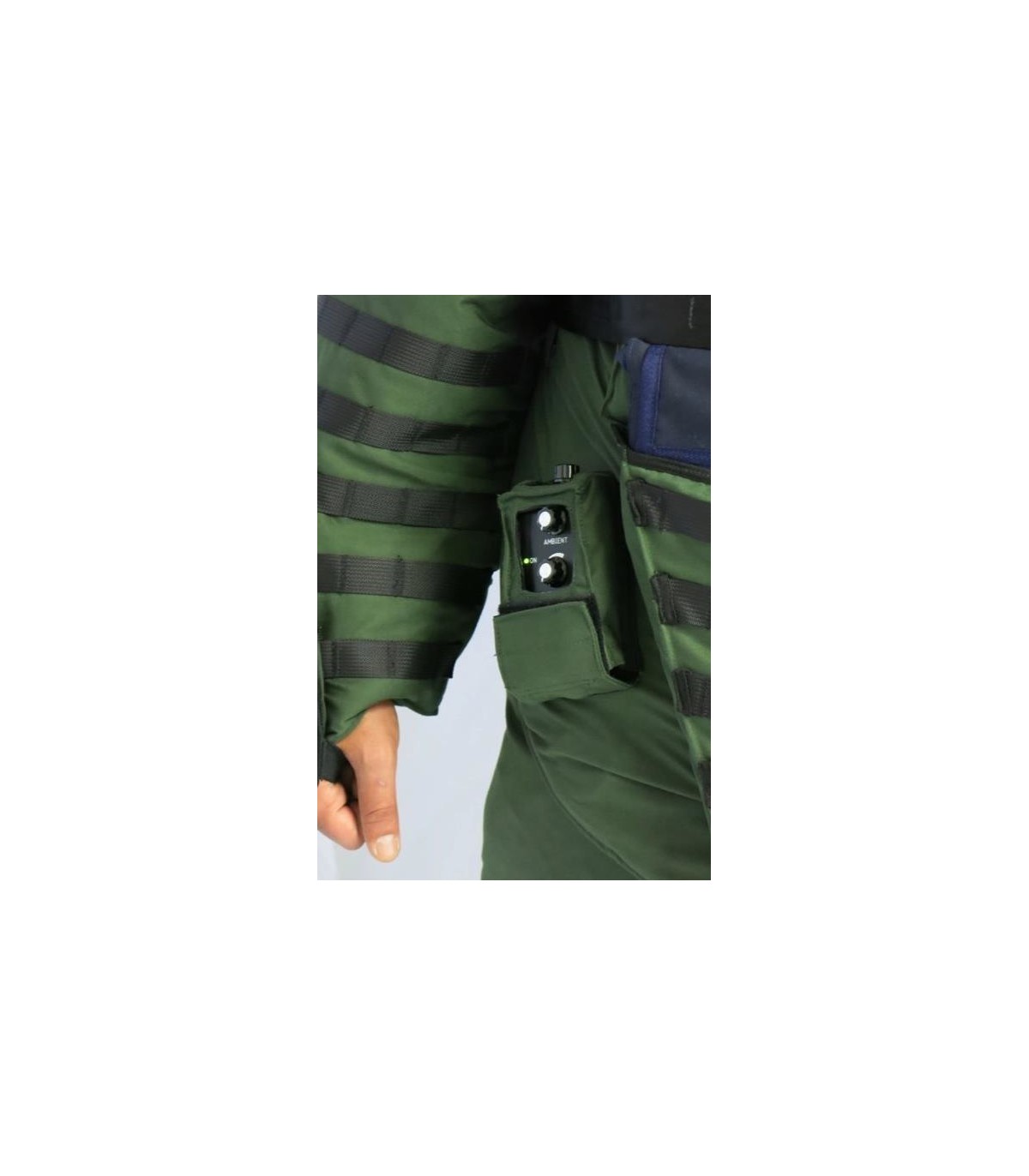

The jacket is a long-sleeved, side-opening design filled with flexible Kevlar armour. Provision is made on the front for the attachment of rigid chest and groin blast plates by means of integral pockets with webbing and Velcro securing straps. Pouches for working tools, blower and radio are attached to the front and back of the outer cover. The high collar provides overlap protection to the helmet, visor and neck-guard. Immediate removal of the jacket is achieved by use of the quick release straps attached to the side and shoulder.
NATO STOCK NO:
Ballitics Inserts: Multi-layer water-repellent Aramid 129 Ht stitched for an enhanced protection level.
Outer Cover: Fire retardant material.
Colour: Navy Blue or Militar Green.
Propietary: Armoured steel plats with closed cell, linear foam.
Blast Plates: Armoured Steel.
1. Suit priot to testing.
2. Suit subject to flare ball from plastic explosive detonation at 2 metres.
3. After plastic explosives detonation.
4. Pressure tester on cheek dummy to indicate inside helmet.
The Trousers have fully adjustable supporting braces and wide Velcro waistband catering for small, medium and large sizes. Affixed to the front of the trousers is a flexible, groin protector retained in position by Velcro and elastic. Al the rear of the legs a full length Velcro strip is used in conjunction with the retaining straps to fix the articulated flexible armour in position.The overboots are an integral part of the trousers and are held in position by Velcro, leather and webbing straps.
Outer Cover: Flame retardant level III
Insert: Aramid 129 HT multi-layer.
Suit: 600 m/s (without armoured blast plates). 1900m/s with armoured plates.
Weight of suit: Approx. 29 kg. with blast plates. 23kg without blast plates.
Armoured blast plates: 1900 m/s (groin, chest and neck)
Power Pack: 12v DC auxiliary output socket to power optional accesories such as helmet mounted video camera or torch. Mains AC and 12v DC provides 90% recharge within 15 mins.
Helmet: 5 Kg. (Including visor)
Level: STANAG NATO 2920.
Helmet: 610 m/s
Helmet visor: 800 m/s anti-ballistic hardened acrylic/polycarbonate laminate.
Helmet: Compatible with any communicator system-radio or hard-wired.
Air blower: 200 litres per minute minimum, 3 speed, can accommodate an NBC canister.
The NIDEC Cooling is designed to offer a safe and cool environment for people who maintain a high level of efficiency and concentration under extreme heat. The system is ideally suited for persons involved in bomb disposal and surveillance operations, as well as personnel in non-air-conditioned armoured vehicles, firefigthers, mine workers, etc.
The TAF20 Cooling System uses ice water to remove body heat produced during strenuous work, especially in hot environments.
Made from fire retardant Kermel material. The TAF20 Cooling Suit also offers protection against body impact and heat have shown this suit is suitable for use under bomb suits, chemical suits and many other applications where body heat removal is desirable.
The NIDEC Cooling Suit comprises of a one piece garment covering the upper body upper arms and legs, as well as a close fitting open faced hood for head, a cooling pump and pouch, two water bottles, battery ack and carrying bag. One size fits all.
Heat Removal Rate: 270 watts (full suit). )
Endurance min. 45 min at 35ºC (95ºF)
Control: ON/OFF/ Flow rate control.
Cold source: Solid ice and water.
Power: 12v from suit power supply.
Cooling unit dry: 0.5 Kg.
Ice: 1.5 Kg.
Water: 0.5 Kg.
Pump unit: 1.0 Kg.
Garment: Kermel stretch knit flame retardant fabric.
Worn next to skin under and clothing.
Cooling unit can attach to bomb suit via harness.
Second water/ice bottle supplied for stand-by.
NATO STOCK NO:
HARD-WIRED COMMUNICATIONS SYSTEM
The Hard-Wired Communications System is a fully duplex communication system
designed specifically for EOD teams using the EOD Bomb Disposal Suit.
The system provides duplex communication between the bomb disposal operator and his back-up team. It consists of a plug which connects to the helmet’s in-built earpiece and microphone, 100 meters of twisted core signal cable mounted on a spool, a headset, speaker/amplifier, and carrying bag.
125 meters cable length also available
Tape recorder can be provided
WIRELESS COMMUNICATIONS SYSTEM
ALINCO DJ175 HAND-HELD RADIO TRANSCEIVER
Power, Features and Convenience
Alinco has created a new 2 meter HT that sets new standards in features, convenience and easy operation. The DJ-175 sports an alphanumeric display for easy memory management. It has an ergonomic design that is user friendly and the 5 watt output battery is standard. Be prepared for virtually any selective calling situation, or gaining access to repeaters, with the 39-tone CTCSS, 104 DCS, Tone-bursts and DTMF encoding. All are included at no extra cost. Best of all, the DJ-175 retains the proud Alinco tradition of quality, construction and excellent value.
* 2-touch Repeater Access
* Rugged polycarbonate body
* Highly visible backlit alpha-numeric display
* Direct frequency input through illuminated keypad
* 200 memories plus 1 Call channel
* VFO, Memory and Scan mode
* Ultra-flexible antenna with SMA port
* 39 CTCSS tone squelch (encode/decode)
* 1000, 1450, 1750 and 2100Hz Tone bursts
* Battery-drain functions avoids memory-effect
* Ergonomic design, fits in the palm of your hand
* Wire-cloning capability
* 3 levels of output power (5/2/0.5W)
* Clean, crisp and powerful 500mW
[E model 230V] TX 144~145.995MHz *144~145.995MHz
RX 144~145.995MHz *144~145.995MHz
* Guaranteed range per specifications
Mode: F3E (FM) / F2D
Frequency steps: 5, 10, 12.5, 20, 25 & 30KHz
Memory channels: 200 channels + 1 CALL channel + 1 Repeater-
Access function memory
Antenna connector: 50Ω unbalanced
Frequency stability: ±2.5ppm
Microphone impedance : 2kΩ nominal
Power supply requirement: 7.2V Battery only
Current drain (Approx.) : 1.6A Transmit high at 5W
250mA Receive at 500mW
30mA Battery save on
Usable temperature range: -10~+45°C (+14~113°F)
Ground: Negative ground
Dimensions: 58(W)×107.5(H)×36.3(D) mm
Weight:Approx. 245g/ 8.7oz with EBP-72 & antenna
Output power (Approx.) : 5W (High)/ 2W (Middle)/ 0.5W (Low)
Modulation: Variable reactance frequency modulation
Spurious emissions: ‒60dB or less
Max.frequency deviation:±5KHz ±2.5KHz (Narrow band model)**
Receive system: Double conversion superheterodyne
Intermediate frequencies: 1st: 21.7MHz / 2nd: 450KHz
Sensitivity(12dB SINAD): -14dBμ (0.2μV)
Selectivity: -6dB: 12KHz or more /-60dB: 26KHz or less
-6dB: 6KHz or more / -60dB: 14KHz or less (Narrow band model)**
Audio output power: 500mW (8Ω, MAX)/400mW (8Ω, 10% THD)
** Narrow-FM models available depending on areas of distribution.
