Handheld Metal Detector (Rechargable)

The Professional Standard in Handheld Detection

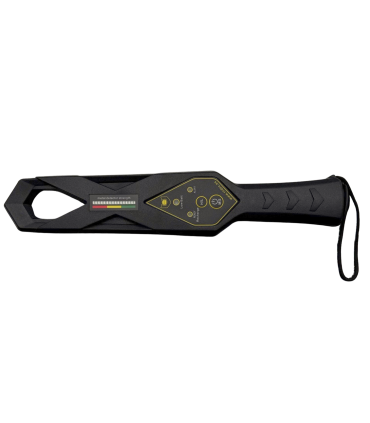

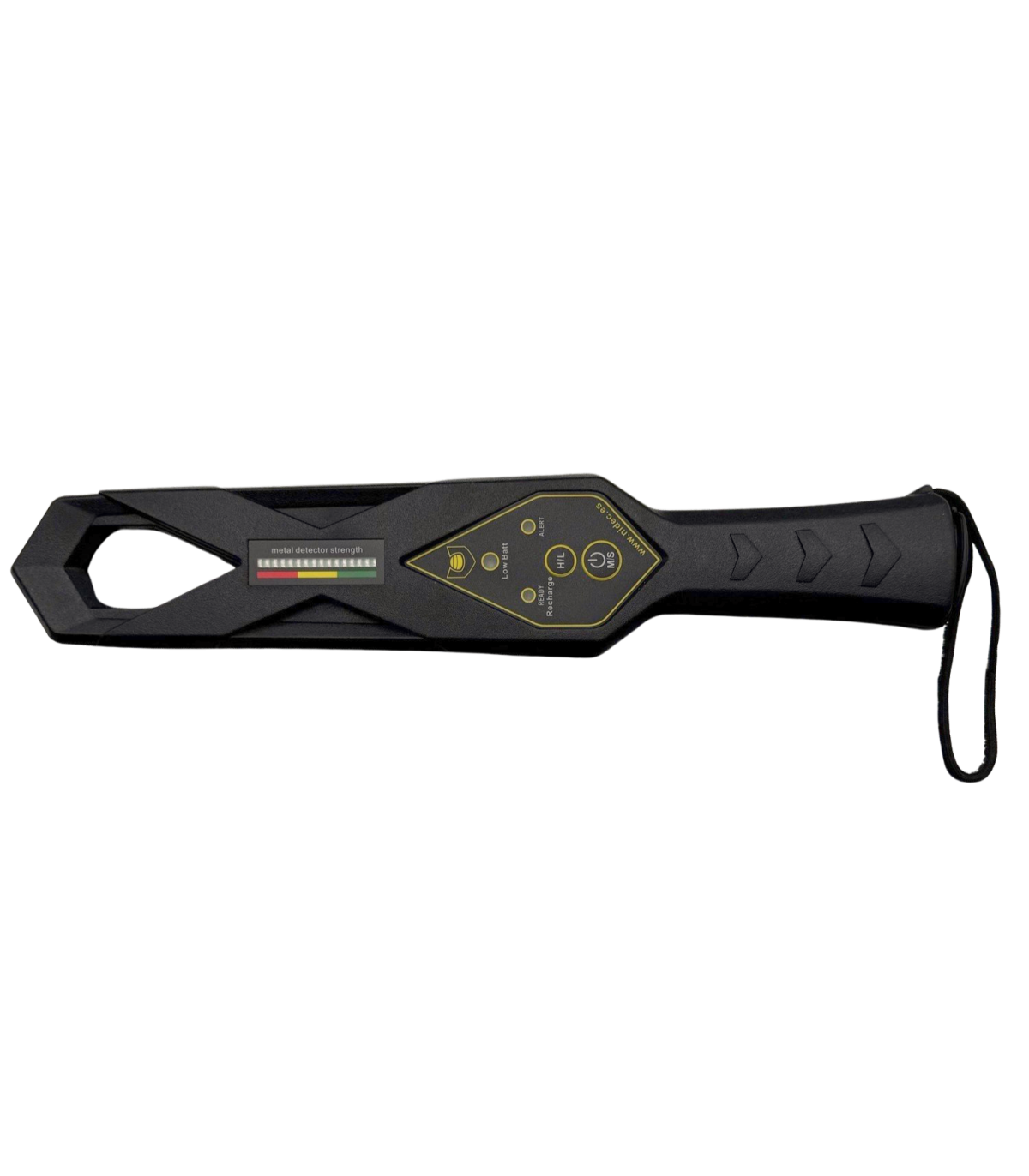

The NIDEC DMA10 is a high-performance handheld metal detector designed to offer reliable and accurate detection in a rugged, lightweight, and extremely easy-to-operate format. It is the indispensable tool for security professionals across a wide variety of screening environments.

Intuitive and Effective Operation

Designed for immediate performance without complications.

• Power On and Go: Simply slide the main switch; no prior calibration or adjustments are required. The flashing green light indicates it is ready to scan.
• Dual Alarm Modes: Choose the mode that best suits the situation using the main switch:

1. Audible Alarm + Red Light: A clear beep and a red light indicate detection. Ideal for noisy environments or when an audible alert is required.
2. Vibrating Alarm + Red Light: A discrete vibration in the handle and a red light. Perfect for discreet operations or to avoid alerting the individual being scanned.

• Clear LED Indicators: Identify the detector's status at a glance:

1. Flashing Green: Powered on and ready.
2. Flashing Red: Metal detected.
3. Solid Yellow: Low battery.

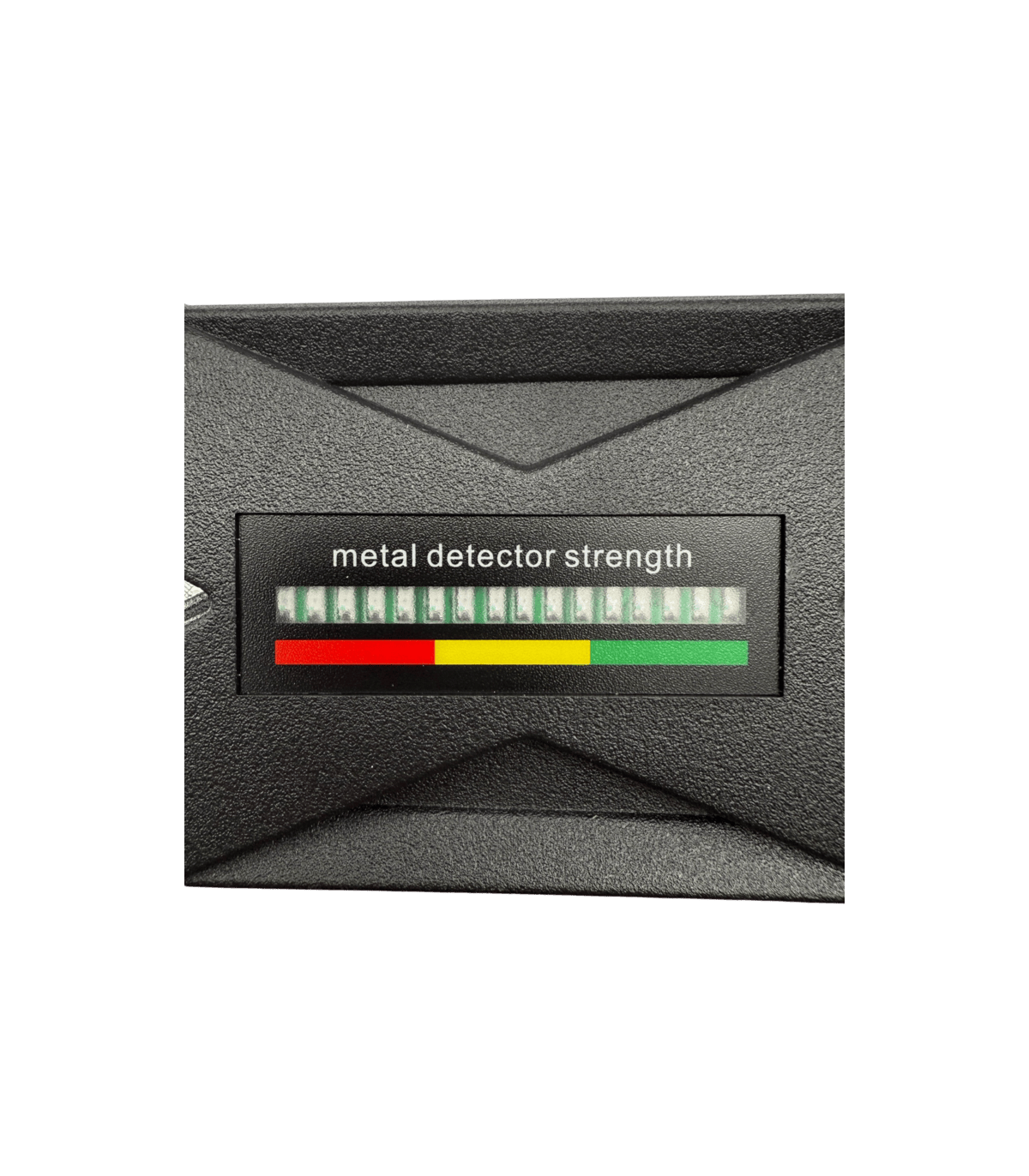

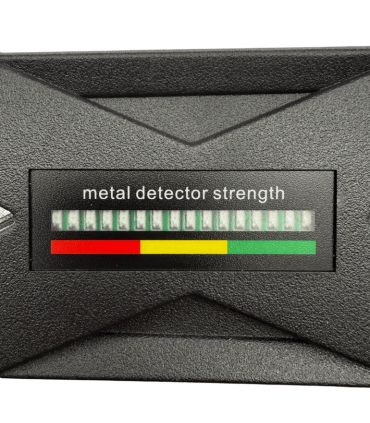

4. Signal Strength Indicator (Green to Red): Shows the proximity or size of the detected metal object.

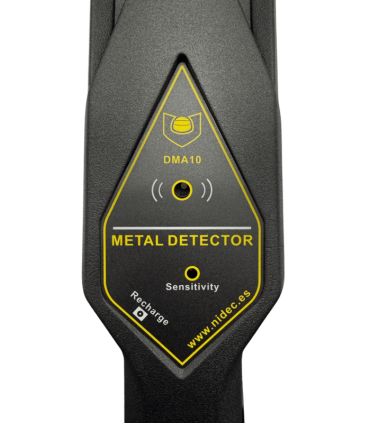

Adjustable Sensitivity for Every Scenario

• High Sensitivity (Default): Optimized to detect a wide range of metal objects by simply passing the detection area over the target.
• Low Sensitivity (Push-Button Mode): By pressing and holding the dedicated button, sensitivity is reduced to approximately 1/5th. This is ideal for inspections near floors with rebar (concrete) or for ignoring small, irrelevant metal items.

Efficient Power Management

• Standard or Rechargeable Battery: Operates on a standard 9V battery.
• Integrated Rechargeable Option: If you install a rechargeable battery (not included as standard), you can charge the detector directly via its charging port using a suitable charger (12V DC).
• Low Battery Indicator: The solid yellow light alerts you in advance when you need to recharge or replace the battery.
• Long Battery Life: With a 250mAh battery, it can operate for over 40 continuous hours. Performance remains stable even if the 9V battery voltage drops to 7V.

Built to Last

• High Shock Resistance: Designed to withstand intensive use, it can resist free falls from 1 meter high without damage.
• Lightweight and Ergonomic: Weighing only 170g (without battery), it is comfortable to use during long shifts.

Recommended Fields of Use

• Security checks at airports, train stations, docks.
• Customs, public security, border defense.
• Quality inspections in food and pharmaceutical industries.
• Security inspections at important venues, playgrounds, detection in lumber mills.
• Precious metal detection (jewelry factories, electronics factories).

Important Precautions

• Always turn off the detector after use.
• Remove the battery if the detector will not be used for an extended period.
• The alarm only sounds or vibrates while the detector is moving over metal.
• DANGER! NEVER attempt to charge standard (alkaline) batteries. Only charge specifically RECHARGEABLE batteries to avoid explosion risk.

Technical Specifications

• Operating Frequency: 22 KHz.
• Power Consumption: Max 270mW.
• Standby Current: < 5mA.
• Operating Voltage: 7-12V DC.
• Working Temperature: -10°C to +65°C.
• Weight: 170g (without battery).
• Dimensions: 295mm x 68mm x 28mm.
• Detection Range (Examples): Staple 30-50mm, Caliber 38 Handgun 250mm.
