Comprehensive Protection for the Riot Officer

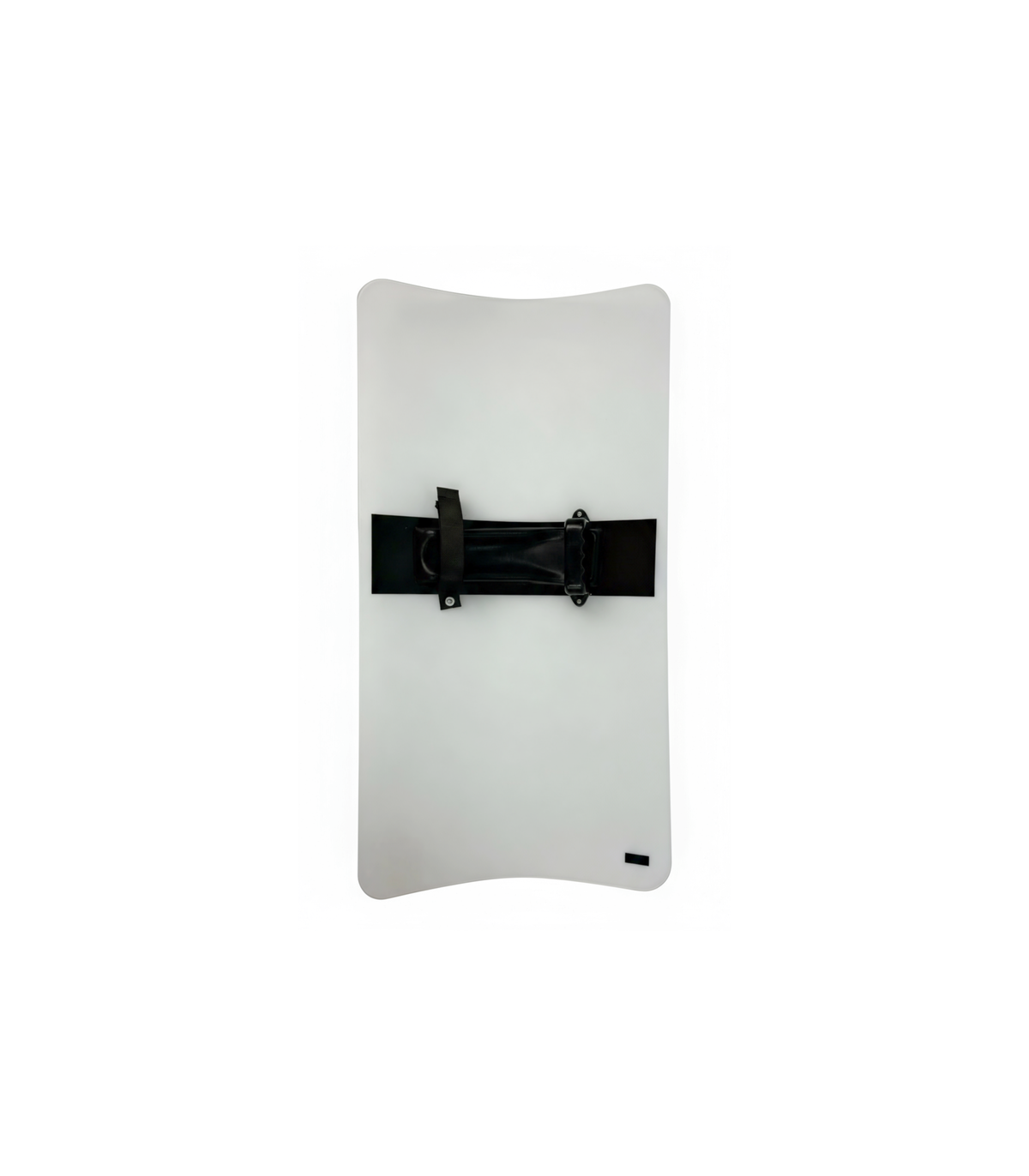

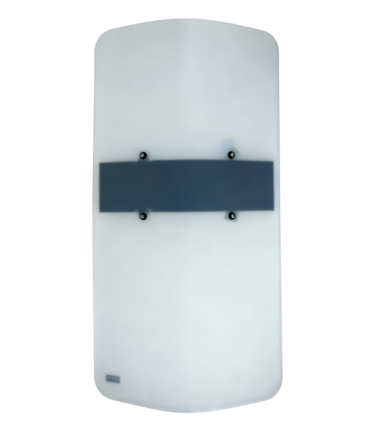

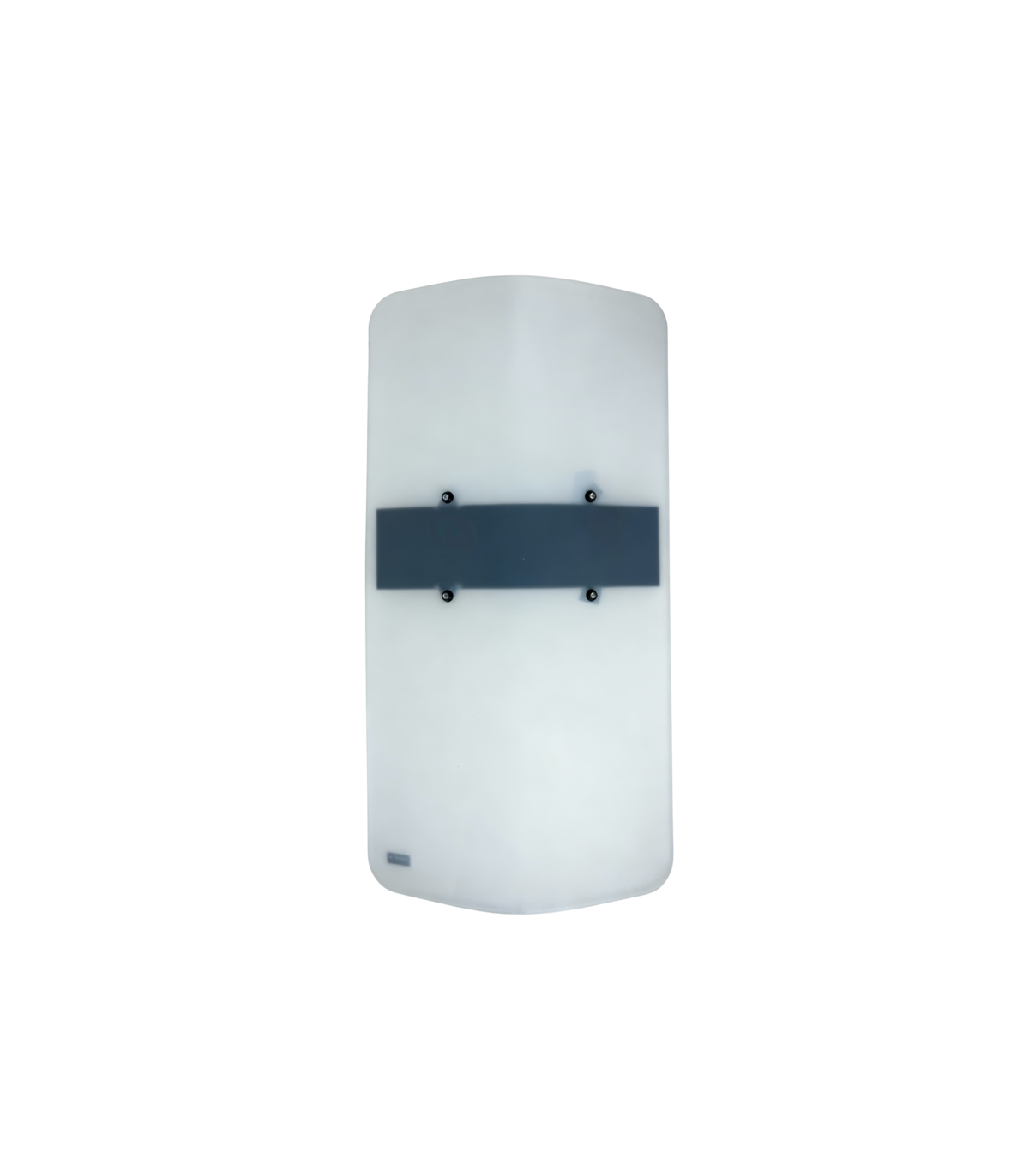

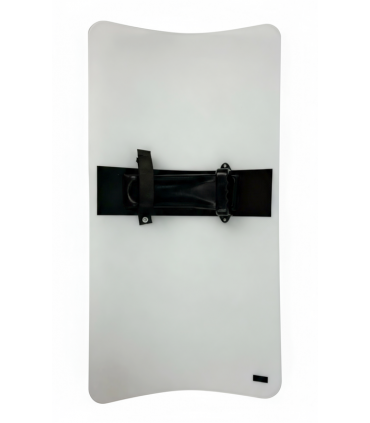

The NIDEC EPP33 shield represents the maximum level of body coverage in our riot protection line. With its extended dimensions (110x60 cm), it offers "head-to-toe" protection, utilizing the same superior engineering and advanced polycarbonate blend that guarantees the safety and reliability of the entire NIDEC range.
The Key Difference: NIDEC Advanced Polycarbonate
Not all polycarbonates are created equal. We use a proprietary blend of high-performance resins, far superior to conventional polycarbonates.
- Superior Resistance Without Shattering: Our composition is designed to absorb and dissipate impact energy without shattering. It flexes under extreme pressure and returns to its shape, unlike lower-quality polycarbonates that can dangerously fragment upon strong impact, becoming a risk to the officer.
- High Level of Certified Protection: It easily surpasses impact tests, achieving resistance levels of >150 J of kinetic impact energy and >20 J of spike kinetic energy.
- Optical Clarity and Chemical Resistance: Offers excellent transparency without visual distortion (ideal for recording through it) and greater resistance to chemical agents.
Ergonomic and Tactical Design

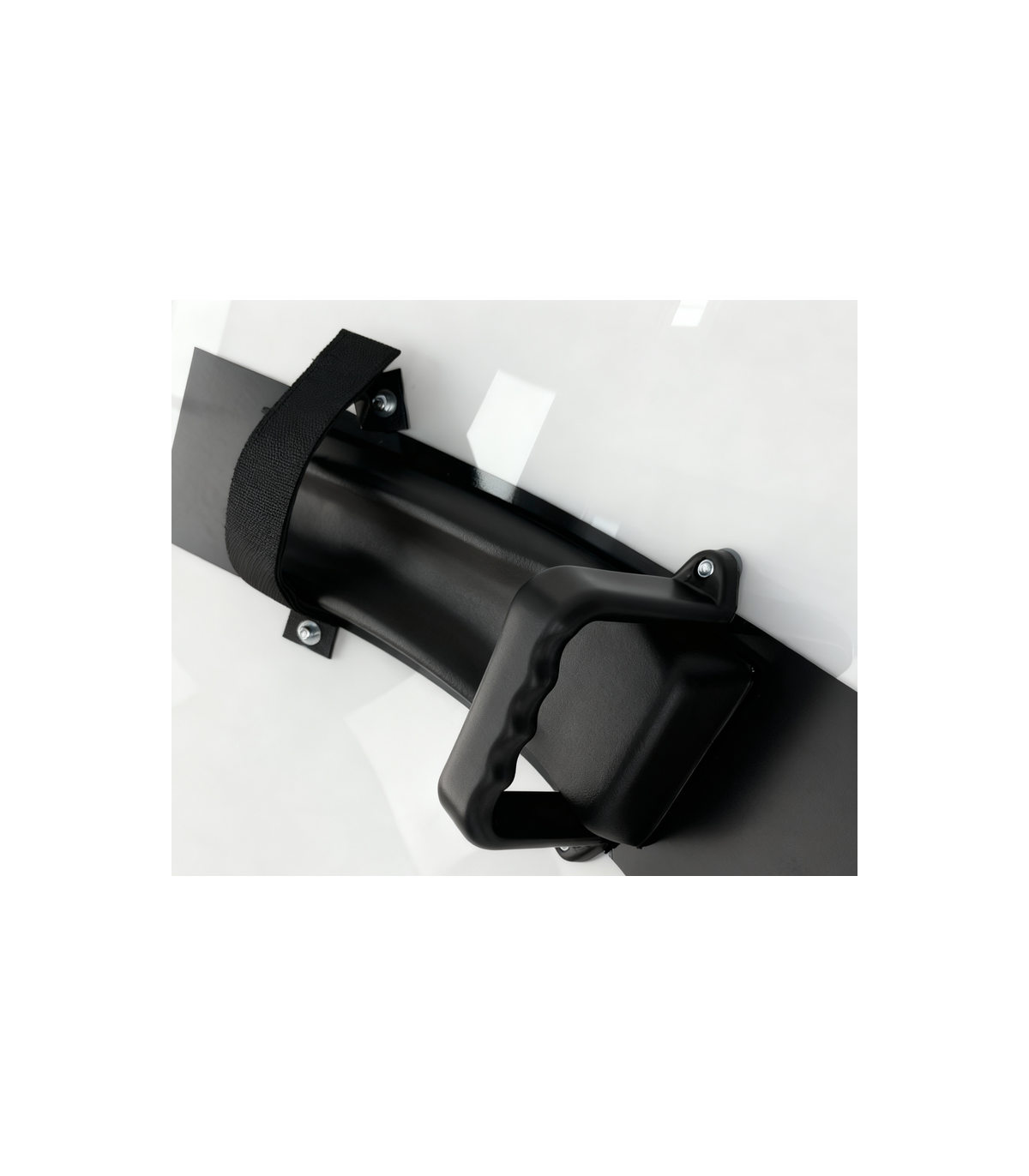

- Ambidextrous Handle System: The shield can be easily configured by the user for right or left-hand use. It includes an ergonomic handle with finger grooves and a non-conductive polypropylene grip, complemented by an adjustable Velcro forearm strap that allows for quick release if needed.
- Protective Convex Shape: Its thermoformed convex curvature helps deflect impact energy towards the sides, reducing the force transmitted to the officer's arm.
- Passive Safety: All edges are rounded and polished to eliminate sharp edges. It does not incorporate ribs or reinforcements that could obstruct vision.
Detailed Technical Specifications
Below are the complete technical specifications for the EPP33 shield, grouped by category:
General and Performance
- Material: Proprietary blend of high-performance polycarbonate.
- Dimensions: 110 cm (Height) x 60 cm (Width) x 0.4 cm (Thickness).
- Weight: 3.5 kg.
- Impact Resistance: > 150 J (Kinetic) / > 20 J (Spike).
- Warranty: 5 years against manufacturing defects of the polycarbonate.
- Treatments: Anti-scratch and Anti-fog.
- Service Temperature: -50°C to +50°C.
Physical Properties
- Density (ISO 1183): 1.2 g/cm³.
- Moisture Absorption (ISO 62-4): 0.15%.
- Molding Temperature: 180-210 °C.
Mechanical Properties
- Flexural Strength (ISO 527-2): 60 MPa.
- Flexural Strain (ISO 527-2): 6%.
- Tensile Strength (ISO 527-2): 60 MPa.
- Elongation at Break (ISO 527-2): >70%.
- Notched Charpy Impact (ISO 179): No break (kJ/m²).
Thermal Properties
- Vicat Softening Temperature (ISO 306): 148 °C.
- Thermal Conductivity (DIN 52612): 0.2 W/mK.
- Linear Thermal Expansion (DIN 53752-A): 0.065 mm/mK.
- Heat Deflection Temperature (0.45 MPa, ISO 75-2): 139 °C.
- Specific Heat Capacity: 1.17 J/gK.
Optical Properties
- Light Transmission (DIN 5036-3): 86%.
- Refractive Index (ISO 489): 1.586.
Electrical Properties
- Volume Resistivity (IEC 60093): 10^15 Ohm.cm
- Dielectric Strength (IEC 60243-1): 35 kV/mm.
- Surface Resistivity (IEC 60093): >10^14 Ohm/sq
- Dielectric Constant (1 kHz, IEC 60250): 3.1
Options and Accessories
- Other Sizes: Model EPP22 available in a smaller size (92x53 cm).
- Increased Thickness: Inquire about availability of special models (up to 0.7 cm) with V50 anti-fragmentation certification up to 260 m/s.
- Carrying Bag: Optional nylon protective bag available.
- Markings: Adhesive labels RPP25 (POLICE, LOCAL POLICE, etc.) can be added. Inquire about other options.
Nidec.es, Your Trusted Partner in Tactical Equipment
With over 25 years of experience in the sector, at Nidec we don't just sell products; we offer comprehensive solutions. We are both official distributors of the most prestigious brands and manufacturers of our own tactical equipment, guaranteeing the highest quality, product expertise, and reliability with every purchase. Your safety and that of your team are in the hands of experts.
